MAX9201 - 低成本、7ns、低功耗电压比较器

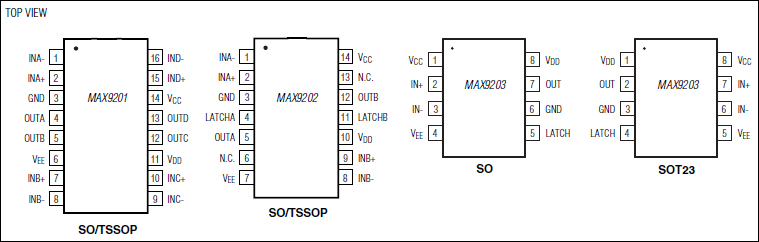

MAX9201是Maxim美信半导体公司的一款放大器产品，MAX9201是低成本、7ns、低功耗电压比较器，本站介绍了MAX9201的封装应用图解、特点和优点、功能等，并给出了与MAX9201相关的Maxim元器件型号供参考。

MAX9201 - 低成本、7ns、低功耗电压比较器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX9201/MAX9202/MAX9203 high-speed, lowpower,quad/dual/single comparators feature TTL logicoutputs with active internal pullups. Fast propagationdelay (7ns typ at 5mV overdrive) makes these devicesideal for fast A/D converters and sampling circuits, linereceivers, V/F converters, and many other data-discrimination,signal restoration applications.

All comparators can be powered from separate analogand digital power supplies or from a single combinedsupply voltage. The analog input common-mode rangeincludes the negative rail, allowing ground sensingwhen powered from a single supply. The MAX9201/MAX9202/MAX9203 consume only 9mW per comparatorwhen powered from a +5V supply.

The MAX9202/MAX9203 feature output latches with TTLcompatible inputs. The comparator output states areheld when the latch inputs are driven low. TheMAX9201 provides all the same features as theMAX9202/MAX9203 with the exception of the latches.

The MAX9201/MAX9202/MAX9203 are lower power andlower cost upgrades to the MAX901/MAX902/MAX903offering a 50% power savings and smaller packaging.

关键特性

以下关键特性由Maxim美信半导体提供：

Fast 7ns Propagation Delay

Low 9mW/Comparator Power Consumption

Separate Analog and Digital Supplies

Flexible Analog Supply: +5V to +10V or ±5V

Input Voltage Range Includes

Negative Supply Rail

TTL-Compatible Outputs

TTL-Compatible Latch Inputs(MAX9202/MAX9203)

Available in Space-Saving Packages

8-Pin SOT23 (MAX9203)

14-Pin TSSOP (MAX9202)

16-Pin TSSOP (MAX9201)

热门应用

高速A/D转换器

高速数据采样

高速信号整形/恢复

高速V/F转换器

输入触发电路

线接收器

PWM电路

门限检测器
