MAX967 - 单/双/四路、微功耗、超低电压、满摆幅输入/输出比较器

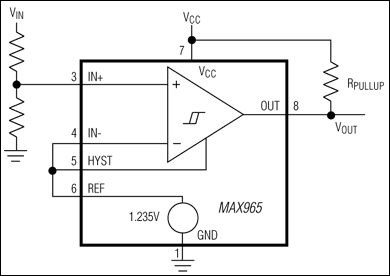

MAX967是Maxim美信半导体公司的一款放大器产品，MAX967是单/双/四路、微功耗、超低电压、满摆幅输入/输出比较器，本站介绍了MAX967的封装应用图解、特点和优点、功能等，并给出了与MAX967相关的Maxim元器件型号供参考。

MAX967 - 单/双/四路、微功耗、超低电压、满摆幅输入/输出比较器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX965MAX970 single/dual/quad micropowercomparators feature rail-to-rail inputs and outputs, andfully specified single-supply operation down to +1.6V.These devices draw less than 5µA per comparator andhave open-drain outputs that can be pulled beyond VCCto 6V (max) above ground. In addition, their rail-to-railinput common-mode voltage range makes these comparatorssuitable for ultra-low-voltage operation.

A +1.6V to +5.5V single-supply operating voltage rangemakes the MAX965 family of comparators ideal for 2-cellbattery-powered applications. The MAX965/MAX967/MAX968/MAX969 offer programmable hysteresis and an internal 1.235V ±1.5% reference. All devices areavailable in either space-saving 8-pin µMAX® or 16-pinQSOP packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Ultra-Low Single-Supply Operation down to +1.6V

Rail-to-Rail Common-Mode Input Voltage Range

3µA Quiescent Supply Current per Comparator

Open-Drain Outputs Swing Beyond VCC

1.235V ±1.5% Precision Internal Reference (MAX965/967/968/969)

10µs Propagation Delay (50mV overdrive)

Available in Space-Saving Packages:

8-Pin µMAX (MAX965MAX968)

16-Pin QSOP (MAX969/MAX970)

热门应用

2节电池供电/便携系统

地/电源检测

移动通信

门限检测器/鉴别器

电压电平转换器

窗比较器
