产品概述

The MAX9691/MAX9692/MAX9693 are ultra-fast ECL comparators capable of very short propagation delays. Their design maintains the excellent DC matching characteristics normally found only in slower comparators.

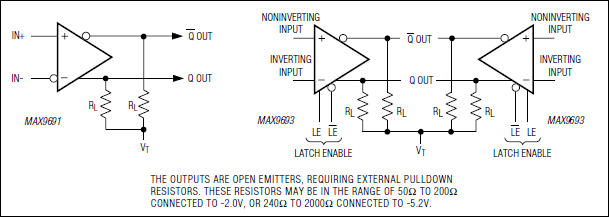

The MAX9691/MAX9692/MAX9693 have differential inputs and complementary outputs that are fully compatible with ECL-logic levels. Output current levels are capable of driving 50Ω terminated transmission lines. The ultra-fast operation makes signal processing possible at frequencies in excess of 600MHz.

The MAX9692/MAX9693 feature a latch-enable (LE) function that allows the comparator to be used in a sample-hold mode. When LE is ECL high, the comparator functions normally. When LE is driven ECL low, the outputs are forced to an unambiguous ECL-logic state, dependent on the input conditions at the time of the latch input transition. If the latch-enable function is not used on either of the two comparators, the appropriate LE input must be connected to ground; the companion active-low LE input must be connected to a high ECL logic level.

These devices are available in SO, QSOP, and tiny µMAX® packages for added space savings.

关键特性

以下关键特性由Maxim美信半导体提供：

1.2ns Propagation Delay

100ps Propagation Delay Skew

150ps Dispersion

0.5ns Latch Setup Time

0.5ns Latch-Enable Pulse Width

Available in µMAX and QSOP Packages

+5V, -5.2V Power Supplies

热门应用

高速线接收器

高速触发

峰值检测器

门限检测器
