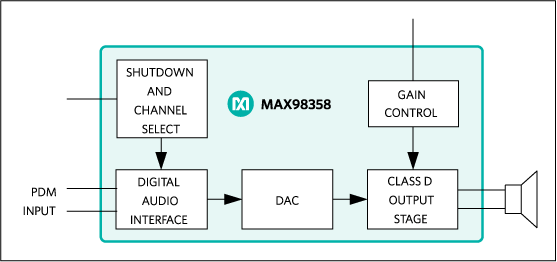

MAX98358 - 典型电路框图：
MAX98358典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX98358介绍

MAX98358 - PDM Input Class D Audio Power Amplifier

MAX98358是Maxim美信半导体公司的一款音频芯片产品，MAX98358是PDM Input Class D Audio Power Amplifier，本站介绍了MAX98358的封装应用图解、特点和优点、功能等，并给出了与MAX98358相关的Maxim元器件型号供参考。

MAX98358 - PDM Input Class D Audio Power Amplifier - 音频芯片 - High-Performance, Low-Noise Digital Input Class D Amplifier - 美信半导体

产品概述

The MAX98358 is a digital pulse-density modulated (PDM) input Class D power amplifier that provides Class AB audio performance with Class D efficiency. This IC offers five selectable gain settings (3dB, 6dB, 9dB, 12dB, and 15dB) set by a single gain-select input (GAIN). The IC can be configured to produce a left channel, right channel, or (left/2 + right/2) output from the stereo input data.

The MAX98358 takes a stereo pulse density modulated (SPDM) input signal directly into the DAC. Data on the rising edge of PDM_CLK is considered left-channel data while data on the falling PDM_CLK edge is right channel. A mono sum feature is also implemented with SPDM data input by summing the data from both rising and falling clock edges.

Active emissions-limiting, edge-rate limiting, and overshoot control circuitry greatly reduce EMI. A filterless spread-spectrum modulation scheme eliminates the need for output filtering found in traditional Class D devices and reduces the component count of the solution.

The IC is available in 9-pin WLP (1.345mm x 1.435mm x 0.64mm) and 16-pin TQFN (3mm x 3mm x 0.75mm) packages and is specified over the -40°C to +85°C temperature range.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Single-Supply Operation (2.5V to 5.5V)
  • 3.2W Output Power into 4Ω at 5V
  • 1.8mA Quiescent Current (VDD = 3.7V)
  • 92% Efficiency (RL = 8Ω, POUT = 1.5W)
  • 29µVRMS Output Noise (AV = 6dB)
  • Low 0.015% THD+N at 1kHz
  • Supported PDM_CLK Rates of 1.84MHz4.32MHz and 5.28MHz8.64MHz
  • Supports Left, Right, or Left/2 + Right/2 Outputs
  • Sophisticated Edge Rate Control Enables Filterless Class D Outputs
  • 77dB PSRR at 217Hz
  • Low RF Susceptibility Rejects TDMA Noise from GSM Radios
  • Extensive Click-and-Pop Reduction Circuitry
  • Robust Short-Circuit and Thermal Protection
  • Available in Space-Saving Packages: 1.345mm x 1.435mm WLP (0.4mm Pitch), 3mm x 3mm TQFN
    • 热门应用
  • 蜂窝电话
  • 笔记本电脑和上网本计算机
  • 便携式媒体播放器
  • 平板电脑
