MX674A - 工业标准、12位ADC，内置电压基准

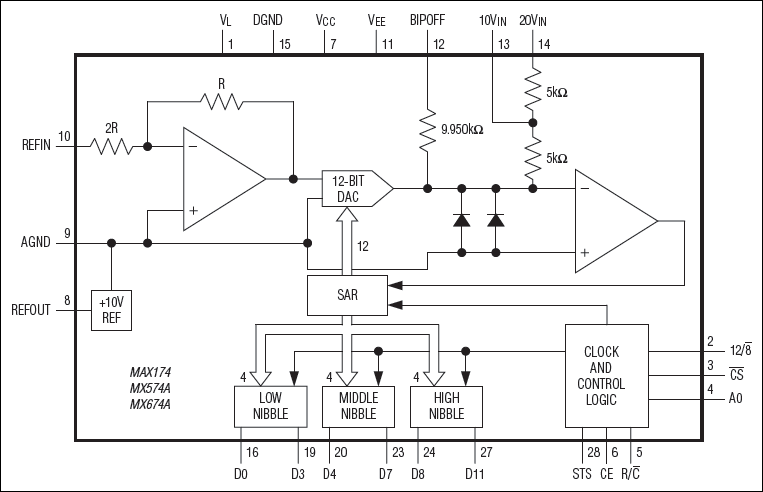

MX674A是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MX674A是工业标准、12位ADC，内置电压基准，本站介绍了MX674A的封装应用图解、特点和优点、功能等，并给出了与MX674A相关的Maxim元器件型号供参考。

MX674A - 工业标准、12位ADC，内置电压基准 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX174/MX574A/MX674A are complete 12-bit analog-to-digital converters (ADCs) that combine high speed, low-power consumption, and on-chip clock and voltage reference. The maximum conversion times are 8µs (MAX174), 15µs (MX674A), and 25µs (MX574A). Maxim’s BiCMOS construction reduces power dissipation 3 times (150mW) over comparable devices. The internal buried zener reference provides low-drift and low-noise performance. External component requirements are limited to only decoupling capacitors and fixed resistors. The versatile analog input structure allows for 0 to +10V or 0 to +20V unipolar or ±5V or ±10V bipolar input ranges with pin strapping.

The MAX174/MX574A/MX674A use standard microprocessor interface architectures and can be interfaced to 8-, 12-, and 16-bit wide buses. Three-state data outputs are controlled by active-low CS, CE, and R/active-low C logic inputs.

关键特性

以下关键特性由Maxim美信半导体提供：

Complete ADC with Reference and Clock

12-Bit Resolution and Linearity

No Missing Codes Over Temperature

150mW Power Dissipation

8µs (MAX174), 15µs (MX674A), and 25µs (MX574A) Max Conversion Times

Precision Low TC Reference: 10ppm/°C

Monolithic BiCMOS Construction

150ns Maximum Data Access Time

热门应用

数字信号处理

电机系统

高精度过程控制

高速数据采集器
