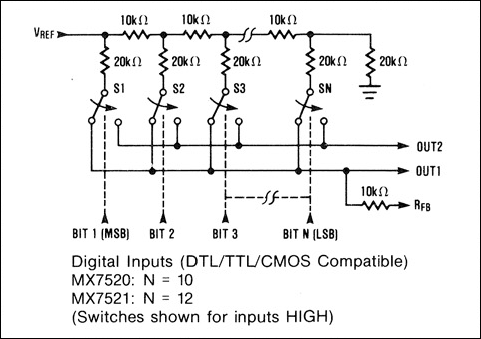

MX7520是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MX7520是CMOS、14和12位乘法DAC，本站介绍了MX7520的封装应用图解、特点和优点、功能等，并给出了与MX7520相关的Maxim元器件型号供参考。

MX7520 - CMOS、14和12位乘法DAC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MX7520 and MX7521 are low cost CMOS multiplying digital-to-analog converters (DACs) with 10 and 12 bit resolution respectively. Both DACs operate from a +5V to +15V supply and dissipate only 20mW. Thin-film resistors provide typically 0.3% untrimmed gain error and 10 ppm/°C gain temperature coefficient. All digital inputs are compatible with both CMOS and TTL logic levels. Maxim's MX7520 and MX7521 are electrically and pin compatible with Analog Devices' AD7520 and AD7521. The MX7520 is packaged in a 16-lead DIP while the MX7521 is packaged in an 18-lead DIP. Both devices are also available in small outline (SO) packages.

关键特性

以下关键特性由Maxim美信半导体提供：

10 or 12 Bit Resolution

8, 9, and 10 Bit End Point Linearity

Low Power Consumption—20mW

TTL and CMOS Compatible

Pin-For-Pin Second Source

热门应用

µP控制校准电路

自动测试设备

数控滤波器

机器及运动控制系统

可编程增益放大器

可编程电源
