当前位置：美信半导体代理 > > 美信芯片 >> DG212
DG212技术文档下载：
DG212技术文档产品手册下载

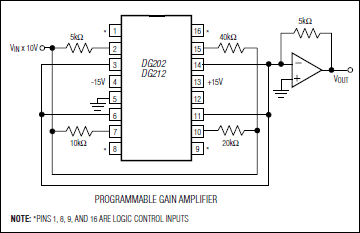

DG212 - 典型电路框图：
DG212典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - DG212介绍

DG212 - 四路SPST、CMOS模拟开关

DG212是Maxim美信半导体公司的一款保护器产品，DG212是四路SPST、CMOS模拟开关，本站介绍了DG212的封装应用图解、特点和优点、功能等，并给出了与DG212相关的Maxim元器件型号供参考。

DG212 - 四路SPST、CMOS模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The DG202/DG212 are normally open, quad single-polesingle-throw (SPST) analog switches. TheseCMOS switches can be continuously operated withpower supplies ranging from ±4.5V to ±18V. Maximguarantees that these switches will not latch up if thepower supplies are disconnected with input signals stillconnected.

The DG202/DG212 are similar to the DG201/DG211except for inverted control inputs. All devices haveguaranteed break-before-make switching, as well asessentially constant on-resistance over the analogsignal range. All switches conduct current in eitherdirection and add no offset to the output signal.

Compared to the original manufacturer's products,Maxim's DG202/DG212 consume very little power,making them better suited for portable applications.Maxim has also eliminated the need for the third logicpower supply (VL) that is required for the operation ofthe original manufacturer's DG212 without sacrificingcompatibility.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Guaranteed ±4.5V to ±18V Operation
  • No VL Supply Required
  • Nonlatching with Supplies Turned Off and InputSignals Present
  • CMOS and TTL Logic Compatible
  • Monolithic, Low-Power CMOS Design
    • 热门应用
  • 模拟多路复用器
  • 自动测试设备
  • 通信系统
  • PBX、PABX
  • 可编程增益放大器
  • 采样/保持
