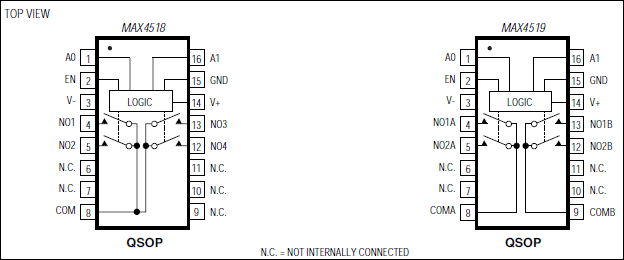

MAX4518是Maxim美信半导体公司的一款保护器产品，MAX4518是高精度、4通道/双2通道、低电压、CMOS模拟多路复用器，本站介绍了MAX4518的封装应用图解、特点和优点、功能等，并给出了与MAX4518相关的Maxim元器件型号供参考。

MAX4518 - 高精度、4通道/双2通道、低电压、CMOS模拟多路复用器 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4518/MAX4519 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 4Ω between channels and remains flat over the specified analog signal range (10Ω max). They also offer low leakage over temperature (NO-off leakage current less than 2nA at +85°C) and fast switching speeds (transition time less than 250ns). The MAX4518 is a 4-channel device, and the MAX4519 is a dual 2-channel device.

The MAX4518/MAX4519 are fabricated with Maxim's low-voltage silicon-gate process. Design improvements yield extremely low charge injection (less than 5pC) and guarantee electrostatic discharge protection greater than 2000V.

These muxes operate with a single +2.7V to +15V supply or with bipolar ±2.7V to ±8V supplies, while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading.

关键特性

以下关键特性由Maxim美信半导体提供：

Guaranteed On-Resistance Match Between Channels (< 4Ω )

Low On-Resistance (< 100Ω )

Guaranteed Flat On-Resistance over Signal Range (< 10Ω)

Guaranteed Low Charge Injection (< 5pC)

NO-Off Leakage Current < 2nA at +85°C

COM-Off Leakage Current < 5nA at +85°C

Electrostatic Discharge Protection > 2000V

Single-Supply Operation (+2.7V to +15V) Bipolar-Supply Operation (±2.7V to ±8V)

Low Power Consumption (< 300µW)

Rail-to-Rail Signal Handling

TTL/CMOS-Logic Compatible

热门应用

音频信号切换

自动测试设备(ATE)

电池供电应用

通信系统

引导与控制系统

平面显示器

低电压数据采集

军用无线装置

PBX、PABX

采样保持电路
