MAX107 - 双路、6位、400Msps ADC，带有片上宽带输入放大器

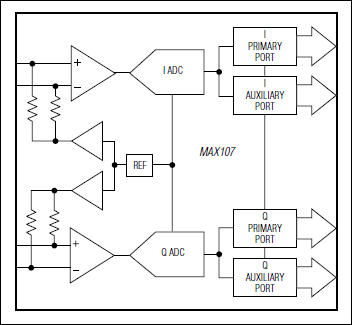

MAX107是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX107是双路、6位、400Msps ADC，带有片上宽带输入放大器，本站介绍了MAX107的封装应用图解、特点和优点、功能等，并给出了与MAX107相关的Maxim元器件型号供参考。

MAX107 - 双路、6位、400Msps ADC，带有片上宽带输入放大器 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX107 is a dual, 6-bit, analog-to-digital converter (ADC) designed to allow fast and precise digitizing of in-phase (I) and quadrature (Q) baseband signals. The MAX107 converts the analog signals of both I and Q components to digital outputs at 400Msps while achieving a signal-to-noise ratio (SNR) of typically 37dB with an input frequency of 125MHz, and an integral nonlinearity (INL) and differential nonlinearity (DNL) of ±0.25 LSB. The MAX107 analog input preamplifiers feature a 400MHz, -0.5dB, and a 1.5GHz, -3dB analog input bandwidth. Matching channel-to-channel performance is typically 0.04dB gain, 0.1LSB offset, and 0.2 degrees phase. Dynamic performance is 36.7dB signal-to-noise plus distortion (SINAD) with a 125MHz analog input signal and a sampling speed of 400MHz. A fully differential comparator design and encoding circuits reduce out-of-sequence errors, and ensure excellent metastable performance of only one error per 1016 clock cycles.

In addition, the MAX107 provides LVDS digital outputs with an internal 6:12 demultiplexer that reduces the output data rate to one-half the sample clock rate. Data is output in two's complement format. The MAX107 operates from a +5V analog supply and the LVDS output ports operate at +3.3V. The data converter's typical power dissipation is 2.6W. The device is packaged in an 80-pin, TQFP package with exposed paddle, and is specified for the extended (-40°C to +85°C) temperature range. For a higher-speed, 800Msps version of the MAX107, please refer to the MAX105 data sheet.

关键特性

以下关键特性由Maxim美信半导体提供：

Two Matched 6-Bit, 400Msps ADCs

Excellent Dynamic Performance

36.7dB SINAD at fIN ≈ 125MHz and

fCLK ≈ 400MHz

Typical INL and DNL: ±0.25LSB

Channel-to-Channel Phase Matching: ±0.2°

Channel-to-Channel Gain Matching: ±0.04dB

6:12 Demultiplexer reduces the Data Rates to 200MHz

Low Error Rate: 1016 Metastable States at 400Msps

LVDS Digital Outputs in Two's Complement Format

热门应用

通信系统

测试仪表

VSAT接收器

无线局域网(WLAN)
