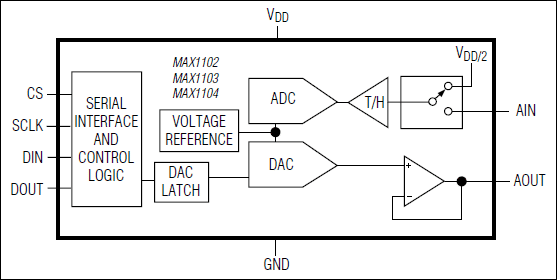

MAX1104 - 典型电路框图：
MAX1104典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX1104介绍

MAX1104 - 8位编解码器

MAX1104是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX1104是8位编解码器，本站介绍了MAX1104的封装应用图解、特点和优点、功能等，并给出了与MAX1104相关的Maxim元器件型号供参考。

MAX1104 - 8位编解码器 - 数据转换器和采样-保持电路 - 业内尺寸最小的编解码器 - 美信半导体

产品概述

The MAX1102/MAX1103/MAX1104 CODECs provide both an 8-bit analog-to-digital converter (ADC) and an 8-bit digital-to-analog converter (DAC) with a 4-wire logic interface. The MAX1102/MAX1103 include an onboard +2V/+4V reference, providing a well-regulated, low noise reference for both the ADC and DAC. The MAX1104 offers ratiometric conversion, with the reference internally connected to VDD.

The MAX1102/MAX1103/MAX1104 are low-cost, low-power CODECs for use with microcontrollers (µCs). They allow for greater flexibility when selecting µC. Less expensive µCs without onboard converters can be used while maintaining overall system performance.

The MAX1102 operates from a single +2.7V to +3.6V supply, the MAX1103 operates from a +4.5V to +5.5V supply, and the MAX1104 operates from a +2.7V to +5.5V supply. The MAX1102/MAX1103 incorporate a VDD monitor in addition to AIN for power supply monitoring. All devices feature a low 18µA standby mode, where both data converters are disabled while the reference remains active, and three shutdown modes: ADC disabled, DAC disabled, and complete shutdown (1µA). A quick 10µs wake-up time allows the MAX1102/MAX1103/MAX1104 to cycle in and out of shutdown even during short-duration idle times.

The MAX1102/MAX1103/MAX1104 are available in a space-saving 8-pin µMAX® package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • 8-Bit ADC
  • ±1 LSB INL
  • Built-In Track-and-Hold
  • 48dB of SINAD
  • 8-Bit DAC
  • ±1 LSB INL
  • 55dB of SFDR
  • Internal Conversion Clock
  • Single-Supply Operation
  • +2.7V to +3.6V (MAX1102)
  • +4.5V to +5.5V (MAX1103)
  • +2.7V to +5.5V (MAX1104)
  • Low Power Consumption
  • 0.5mA at 25ksps
  • 1µA Shutdown Mode
  • 6MHz 4-Wire SPI™, QSPI™, and MICROWIRE™ Compatible Interface
  • Compact 8-Pin µMAX Package
  • Internal Voltage Reference
  • +2V: MAX1102
  • +4V: MAX1103
  • Power-Supply Monitor (MAX1102/MAX1103)
  • Rail-to-rail DAC Output Buffer
    • 热门应用
  • 用于微控制器的模拟I/O
  • 模拟系统信号监控
  • 录音与重放
