MAX1106 - 单电源、低功耗、串行8位ADC

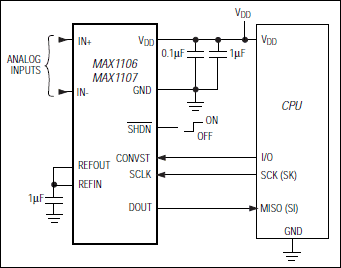

MAX1106是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX1106是单电源、低功耗、串行8位ADC，本站介绍了MAX1106的封装应用图解、特点和优点、功能等，并给出了与MAX1106相关的Maxim元器件型号供参考。

MAX1106 - 单电源、低功耗、串行8位ADC - 数据转换器和采样-保持电路 - 功耗最低的8位、串行接口ADC，内置基准 - 美信半导体

产品概述

The MAX1106/MAX1107 low-power, 8-bit, single-channel, analog-to-digital converters (ADCs) feature an internal track/hold (T/H), voltage reference, clock, and serial interface. The MAX1106 is specified from +2.7V to +3.6V and consumes only 96µA. The MAX1107 is specified from +4.5V to +5.5V and consumes only 107µA. The analog inputs are pin-configurable, allowing unipolar and single-ended or differential operation.

The full-scale analog input range is determined by the internal reference of +2.048V (MAX1106) or +4.096V (MAX1107), or by an externally applied reference ranging from 1V to VDD. The MAX1106/MAX1107 also feature a pin-selectable power-down mode that reduces power consumption to 0.5µA when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 25ksps are performed using the internal clock.

The MAX1106/MAX1107 are available in a 10-pin µMAX® package with a footprint that is just 20% of an 8-pin plastic DIP.

关键特性

以下关键特性由Maxim美信半导体提供：

Single Supply:

+2.7V to +3.6V (MAX1106)

+4.5V to +5.5V (MAX1107)

Low Power:

96µA at +3V and 25ksps

0.5µA in Power-Down Mode

Pin-Programmable Configuration

0 to VDD Input Voltage Range

Internal Track/Hold

Internal Reference:

+2.048V (MAX1106)

+4.096V (MAX1107)

1V to VDD Reference Input Range

SPI/QSPI/MICROWIRE-Compatible Serial Interface

Small 10-Pin µMAX Package

热门应用

4mA至20mA供电远端系统

手持式测量设备

医疗仪器

接收信号强度指示

系统诊断
