MAX111 - 低成本、2通道、±14位串行ADC

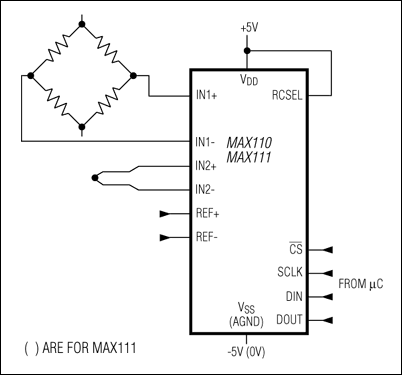

MAX111是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX111是低成本、2通道、±14位串行ADC，本站介绍了MAX111的封装应用图解、特点和优点、功能等，并给出了与MAX111相关的Maxim元器件型号供参考。

MAX111 - 低成本、2通道、±14位串行ADC - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX110/MAX111 analog-to-digital converters (ADCs) use an internal auto-calibration technique to achieve 14-bit resolution plus overrange, with no external components. Operating supply current is only 550µA (MAX110) and reduces to 4µA in power-down mode, making these ADCs ideal for high-resolution battery-powered or remote-sensing applications. A fast serial interface simplifies signal routing and opto-isolation, saves microcontroller pins, and offers compatibility with SPI™, QSPI™, and MICROWIRE™. The MAX110 operates with ±5V supplies, and converts differential analog signals in the -3V to +3V range. The MAX111 operates with a single +5V supply and converts differential analog signals in the ±1.5V range, or single-ended signals in the 0V to +1.5V range.

Internal calibration allows for both offset and gain-error correction under microprocessor (µP) control. Both devices are available in space-saving 16-pin DIP and SO packages, as well as an even smaller 20-pin SSOP package.

关键特性

以下关键特性由Maxim美信半导体提供：

Single +5V Supply (MAX111)

Two Differential Input Channels

14-Bit Resolution Plus Sign and Overrange

0.03% Linearity (MAX110)
0.05% Linearity (MAX111)

Low Power Consumption:

550µA (MAX110)

640µA (MAX111)

4µA Shutdown Current

Up to 50 Conversions/sec

50Hz/60Hz Rejection

Auto-Calibration Mode

No External Components Required

16-Pin DIP/SO, 20-Pin SSOP

热门应用

数据采集

面板表

过程控制

温度测量

称重仪
