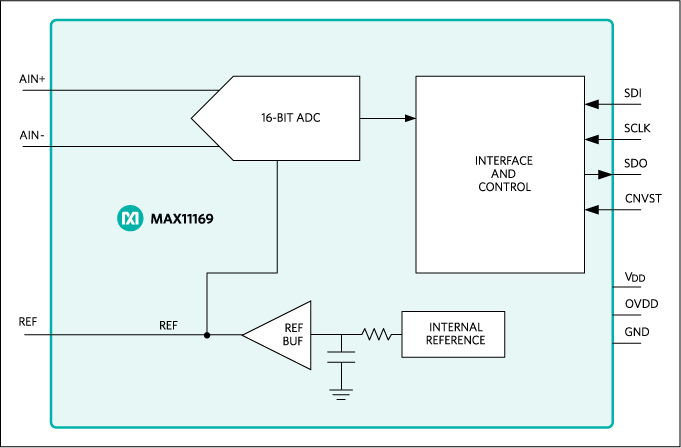

MAX11169 - 典型电路框图：
MAX11169典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX11169介绍

MAX11169 - 16-Bit, 250ksps, ±5V SAR ADC with Internal Reference in µMAX

MAX11169是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX11169是16-Bit, 250ksps, ±5V SAR ADC with Internal Reference in µMAX，本站介绍了MAX11169的封装应用图解、特点和优点、功能等，并给出了与MAX11169相关的Maxim元器件型号供参考。

MAX11169 - 16-Bit, 250ksps, ±5V SAR ADC with Internal Reference in µMAX - 数据转换器和采样-保持电路 - Small, True Bipolar Input, 16-Bit SAR ADC with Internal Reference - 美信半导体

产品概述

The MAX11169 is a 16-bit, 250ksps, SAR ADC offering excellent AC and DC performance with true bipolar input range, internal reference, and small size. The MAX11169 measures a ±5V (10VP-P) input range while operating from a single 5V supply. A patented charge-pump architecture allows direct sampling of high-impedance sources. The MAX11169 integrates a low drift reference with internal buffer, saving the cost and space of an external reference.

This ADC achieves 93dB SNR at 10kHz and -101dB THD. The MAX11169 guarantees 16-bit no-missing codes and ±0.5 LSB INL (typ).

The MAX11169 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11169 is offered in a 10-pin, 3mm x 5mm, μMAX® package and is specified over the -40°C to +85°C temperature range.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • High DC/AC Accuracy Improves Measurement Quality
  • 16-Bit Resolution with No Missing Codes
  • 250ksps Throughput Rates without Pipeline Delay/Latency
  • 93dB SNR and -101dB THD at 10kHz
  • 0.5LSBRMS Input-Referred Noise
  • ±0.2 LSB DNL (typ) and ±0.5 LSB INL (typ)
  • Highly Integrated ADC Saves Cost and Space
  • ±7ppm/°C Internal Reference
  • Internal Reference Buffer
  • ±5V Bipolar Analog Input Range
  • Wide Supply Range and Low Power Simplify Power-Supply Design
  • 5V Analog Supply
  • 2.3V to 5V Digital Supply
  • 33mW Power Consumption at 250ksps
  • 10µA in Shutdown Mode
  • Multi-Industry Standard Serial Interface and Small Package Reduce Size
  • SPI/QSPI™/MICROWIRE®/DSP-CompatibleSerial Interface
  • 3mm x 5mm, Tiny 10-Pin µMAX Package
    • 热门应用
  • 自动测试设备
  • 数据采集系统
  • 工业过程控制
  • 医疗仪表
