MAX128A|MAX128B - 多量程、+5V、12位DAS，带有2线串行接口

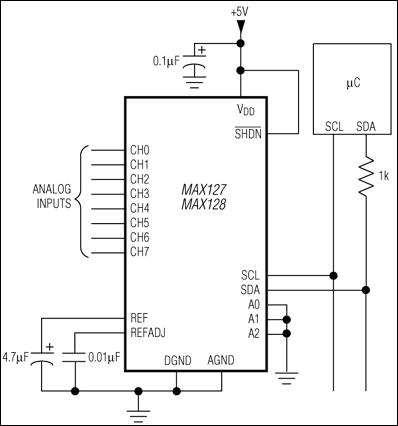

MAX128A|MAX128B是Maxim美信半导体公司的一款美信芯片产品，MAX128A|MAX128B是多量程、+5V、12位DAS，带有2线串行接口，本站介绍了MAX128A|MAX128B的封装应用图解、特点和优点、功能等，并给出了与MAX128A|MAX128B相关的Maxim元器件型号供参考。

MAX128A|MAX128B - 多量程、+5V、12位DAS，带有2线串行接口 - 美信芯片 - 首款2线、12位、8通道、串行ADC，具有±17V故障保护输入 - 美信半导体

产品概述

The MAX127/MAX128 are multirange, 12-bit data acquisition systems (DAS) that require only a single +5V supply for operation, yet accept signals at their analog inputs that may span above the power-supply rail and below ground. These systems provide eight analog input channels that are independently software programmable for a variety of ranges: ±10V, ±5V, 0 to +10V, 0 to +5V for the MAX127; and ±VREF, ±VREF/2, 0 to +VREF, 0 to +VREF/2 for the MAX128. This range switching increases the effective dynamic range to 14 bits and provides the flexibility to interface 420mA, ±12V, and ±15V-powered sensors directly to a single +5V system. In addition, these converters are fault protected to ±16.5V; a fault condition on any channel will not affect the conversion result of the selected channel. Other features include a 5MHz bandwidth track/hold, an 8ksps throughput rate, and the option of an internal 4.096V or external reference.

The MAX127/MAX128 feature a 2-wire, I2C-compatible serial interface that allows communication among multiple devices using SDA and SCL lines.

A hardware shutdown input (SHDN) and two software-programmable power-down modes (standby and full power-down) are provided for low-current shutdown between conversions. In standby mode, the reference buffer remains active, eliminating startup delays.

The MAX127/MAX128 are available in 24-pin narrow PDIP or space-saving 28-pin SSOP packages.

关键特性

以下关键特性由Maxim美信半导体提供：

12-Bit Resolution, 1/2 LSB Linearity

+5V Single-Supply Operation

I2C-Compatible, 2-Wire Serial Interface

Four Software-Selectable Input Ranges

MAX127: 0 to +10V, 0 to +5V, ±10V, ±5V

MAX128: 0 to +VREF, 0 to +VREF/2, ±VREF, ±VREF/2

8 Analog Input Channels

8ksps Sampling Rate

±16.5V Overvoltage-Tolerant Input Multiplexer

Internal 4.096V or External Reference

Two Power-Down Modes

24-Pin Narrow PDIP or 28-Pin SSOP Packages

热门应用

电池供电应用

数据采集

工业控制系统

机器人技术
