MAX134 - 3¾位数字DMM电路

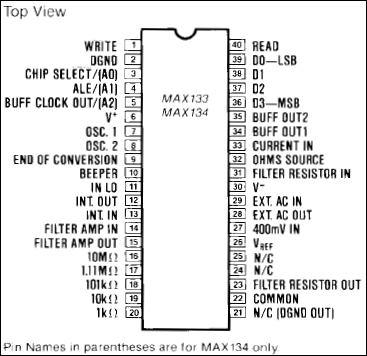

MAX134是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX134是3¾位数字DMM电路，本站介绍了MAX134的封装应用图解、特点和优点、功能等，并给出了与MAX134相关的Maxim元器件型号供参考。

MAX134 - 3¾位数字DMM电路 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX133 and MAX134 are integrating A/D converters for 3¾ digit multimeters and data acquisition systems such as data loggers and weigh scales. The A/D's internal resolution is ±40,000 counts. An extra digit is supplied as a guard digit to allow autozero or tare of a 4000 count displayed reading to 1/10 of a displayed count. The conversion time is 50ms.

The MAX133 and MAX134 differ only in their microprocessor interface. The MAX133 has a 4 bit multiplexed address/data bus while the MAX134 has 3 separate address lines and a 4 bit bidirectional data bus. Both devices can be used with 4, 8, and 16 bit microprocessors.

When controlled by a microprocessor, the MAX133 and MAX134 can perform auto-ranging measurements from ±400.0mV to ±4000V full scale. External attenuator resistors are required, but range switching is performed by the A/D.

The power supply is typically a 9V battery or ±5V. Operating current is typically 100µA while standby current is only 25µA.

关键特性

以下关键特性由Maxim美信半导体提供：

40,000 Count Resolution

0.025% Accuracy

20 Conversions per Second

Microprocessor Interface

100µA Operating Supply Current

Low External Component Count

5µV Resolution

Demonstration Kit Available MAX134/DEMO

热门应用

数据采集系统

数据记录仪

数字面板表

称重仪
