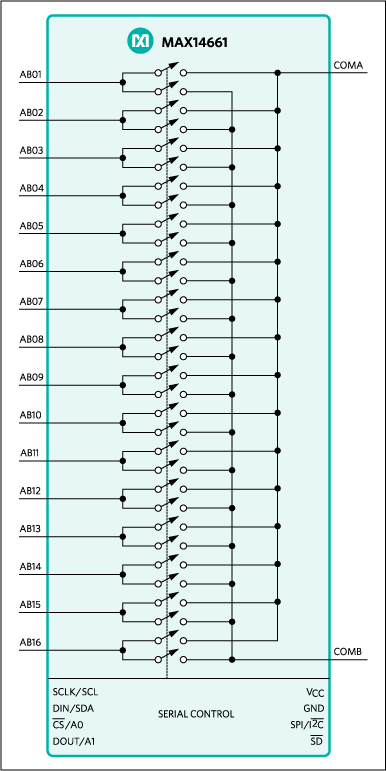

MAX14661 - 典型电路框图：
MAX14661典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX14661介绍

MAX14661 - Beyond-the-Rails 16:2 Multiplexer

MAX14661是Maxim美信半导体公司的一款宽带交换产品，MAX14661是Beyond-the-Rails 16:2 Multiplexer，本站介绍了MAX14661的封装应用图解、特点和优点、功能等，并给出了与MAX14661相关的Maxim元器件型号供参考。

MAX14661 - Beyond-the-Rails 16:2 Multiplexer - 宽带交换 - Multiplex ±5.5V Common-Mode Signal From a Single Supply Rail as Low as 1.6V - 美信半导体

产品概述

The MAX14661 is a serially controlled, dual-channelanalog multiplexer allowing any of the 16 pins to beconnected to either common pin simultaneously in anycombination. The device features Beyond-the-Rails™capability so that ±5.5V signals can be passed with anysingle supply between +1.6V and +5.5V.

The serial control is selectable between I2C and SPI.Both modes provide individual control of each independentswitch so that any combination of switches canbe applied. I2C mode provides two address-select pinsallowing for addressing up to four devices on a single bus.The SPI mode includes a DOUT pin that can be used tochain multiple devices together with a single select signal.

The IC is available in a 28-pin (4mm x 4mm) TQFN packageand is specified over the -40oC to +85oC extendedtemperature range. The AB_ and COM_ pins provide±10kV ESD protection (HBM).

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Beyond-the-Rails Technology Reduces Cost and Complexity
  • Switch ± 5.5V Signals from a +1.6V Single Supply
  • Wide +1.6V to +5.5V Supply Range
  • Low 5.5Ω RON (typ) Across the Supply Range
  • Flexible Multiplexing Enables Design Reuse
  • 16:2 Matrix Switch Multiplexer Connects Any InputPin To Either Common Pin In Any Combination
  • Each Switch is Independently Controlled via I2C or SPI
  • Programmable Shadow Registers Allow Simultaneous Updating
  • Low Distortion Switching Improves System Performance
  • Total Harmonic Distortion + Noise 0.005% (typ)
  • RON Flatness 2.5mΩ (typ) Across Complete Signal Range
  • Integrated Protection for System Reliability
  • ±10kV HBM ESD Protection on all AB_ and COM_Pins, Even When Powered Down
