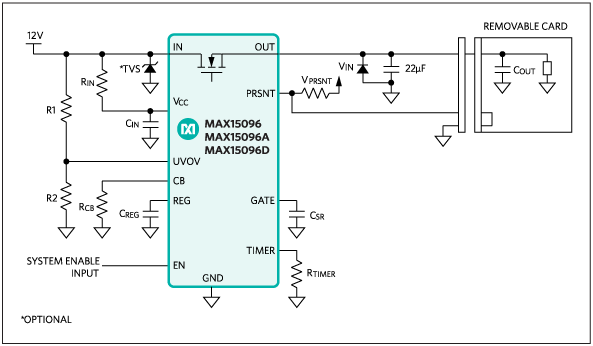

MAX15096A - 典型电路框图：
MAX15096A典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX15096A介绍

MAX15096A - 2.7V to 18V, 6A Integrated Hot-Swap/Electronic Circuit Breaker

MAX15096A是Maxim美信半导体公司的一款热插拔和电源开关产品，MAX15096A是2.7V to 18V, 6A Integrated Hot-Swap/Electronic Circuit Breaker，本站介绍了MAX15096A的封装应用图解、特点和优点、功能等，并给出了与MAX15096A相关的Maxim元器件型号供参考。

MAX15096A - 2.7V to 18V, 6A Integrated Hot-Swap/Electronic Circuit Breaker - 热插拔和电源开关 - 2.7V-18V Input, Smallest 6A Hot-Swap Solution with Only 12mΩ RDSON and 10% Circuit Breaker Threshold Accuracy - 美信半导体

产品概述

The MAX15096/MAX15096A/MAX15096D ICs are integrated solutions for hot-swap applications requiring the safe insertion and removal of circuit line cards from a live backplane. They can also be used as electronics circuit breaker for hard drive and solid-state drive and fans. The devices integrate a hot-swap controller, 12mΩ (typ) power MOSFET, and an electronic circuit-breaker protection in a single package.

The devices are designed for protection of 2.7V to 18V supply voltages. These devices implement a foldback current limit during startup to control inrush current, lowering di/dt and keeping the MOSFET operating under safe operating area (SOA) conditions. After the startup cycle is complete, on-chip comparators provide VariableSpeed/BiLevel™ protection against short-circuit and overcurrent faults, and immunity against system noise and load transients. The load is disconnected in the event of a fault condition. The devices are factory calibrated to deliver accurate overcurrent protection with ±10% accuracy. During a fault condition, PG goes low and the devices latch off (MAX15096) or automatic retry (MAX15096A);the output could also be discharged after a fault event (MAX15096D).

The devices feature an IN-to-OUT short-circuit detection before startup. The devices provide a power-MOSFET GATE pin to program the slew rate during startup by adding an external capacitor. The devices have an undervoltage/overvoltage input pin (UVOV) that can detect an undervoltage/overvoltage fault and disconnect the IN from the OUT. Additional features include internal overtemperature protection and a power-good output (PG).

The devices are available in a 16-bump, 2mm x 2mm wafer-level package (WLP) and are rated over the -40°C to +105°C extended temperature range.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Integration Reduces Solution Size for Blade Servers and Other Space-Constrained Designs
  • Integrated 12mΩ (typ) Internal Power MOSFET
  • Programmable Overvoltage Protection and Undervoltage-Lockout Threshold
  • Power-Good and Fault Outputs
  • Analog Current Report Output without Need for External RSENSE
  • Thermal Protection
  • Flexibility Enables Use in Many Unique Designs
  • 2.7V to 18V Operating Voltage Range
  • Programmable Inrush Current Control Under SOA Operation
  • Adjustable Circuit-Breaker Current/Current-Limit Threshold
  • Programmable Slew-Rate Control
  • Variable-Speed Circuit-Breaker Response
  • Latchoff or Automatic Retry Options
  • Safety Features Ensure Accurate, Robust Protection
  • 6A (max) Load Current Capability
  • ±10% Circuit-Breaker Threshold Accuracy
  • IN-to-OUT Short-Circuit Detection
  • Open-Drain PG Output
  • Output Discharge After a Fault Event (MAX15096D Only)
  • Programmable Additional Delay (2µs max) to Fast-Comparator Response Time
  • Enable Input (EN)
    • 热门应用
  • 刀片式服务器
  • 磁盘驱动器供电
  • 工业应用
  • RAID系统
  • 服务器I/O卡
  • 存储应用
