MAX158 - CMOS、高速、8位ADC，带有多路复用器及电压基准

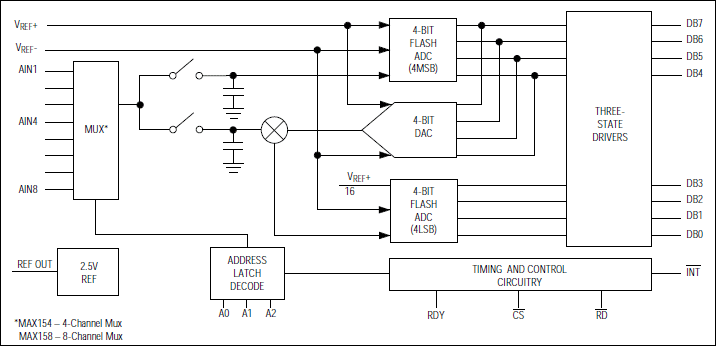

MAX158是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX158是CMOS、高速、8位ADC，带有多路复用器及电压基准，本站介绍了MAX158的封装应用图解、特点和优点、功能等，并给出了与MAX158相关的Maxim元器件型号供参考。

MAX158 - CMOS、高速、8位ADC，带有多路复用器及电压基准 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX154/MAX158 are high-speed multi-channel analog-to-digital converters (ADCs). The MAX154 has four analog input channels while the MAX158 has eight channels. Conversion time for both devices is 2.5µs. The MAX154/MAX158 also feature a 2.5V on-chip reference, forming a complete high-speed data acquisition system.

Both converters include a built-in track/hold, eliminating the need for an external track/hold. The analog input range is 0V to +5V, although the ADC operates from a single +5V supply.

Microprocessor interfaces are simplified by the ADC's ability to appear as a memory location or I/O port without the need for external logic. The data outputs use latched, three-state buffer circuitry to allow direct connection to a microprocessor data bus or system input port.

关键特性

以下关键特性由Maxim美信半导体提供：

One-Chip Data Acquisition System

Four or Eight Analog Input Channels

2.5µs per Channel Conversion Time

Internal 2.5V Reference

Built-In Track/Hold Function

½ LSB Error Specification

Single +5V Supply Operation

No External Clock

New Space-Saving SSOP Package

热门应用

音频仪表

数字信号处理(DSP)

高速数据采集器

高速伺服控制

电信
