MAX11150 - 18-Bit, 500ksps, +5V SAR ADC with Internal Reference in µMAX

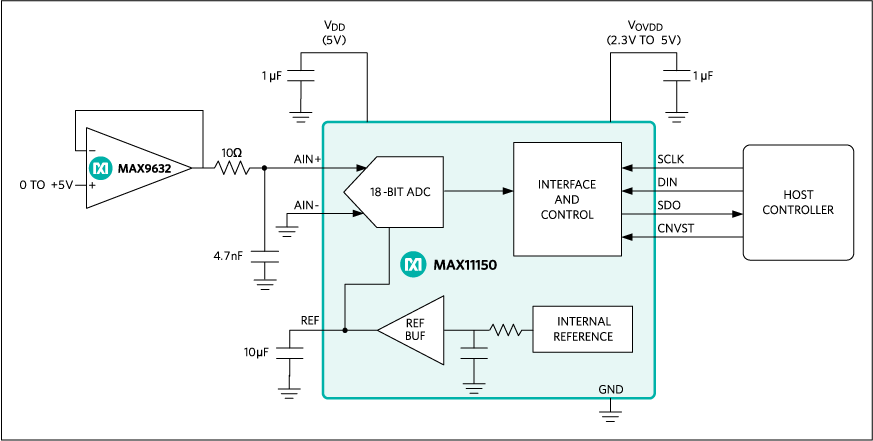

MAX11150是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX11150是18-Bit, 500ksps, +5V SAR ADC with Internal Reference in µMAX，本站介绍了MAX11150的封装应用图解、特点和优点、功能等，并给出了与MAX11150相关的Maxim元器件型号供参考。

MAX11150 - 18-Bit, 500ksps, +5V SAR ADC with Internal Reference in µMAX - 数据转换器和采样-保持电路 - High-Precision ADC with Internal Reference in a 10-Pin Package - 美信半导体

产品概述

The MAX11150 is an 18-bit, 500ksps, SAR ADC offering excellent AC and DC performance with unipolar input range, internal reference, and small size. The MAX11150 measures a +5V (0 to 5V) input range and can operate with single 5V supply. The MAX11150 integrates a low drift reference with internal buffer, saving the cost and space of an external reference.

This ADC achieves 93.0dB SNR and -101.2dB THD. The MAX11150 guarantees 18-bit no-missing codes and ±3.7 LSB INL (typ).

The MAX11150 communicates using an SPI-compatible serial interface at 2.3V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11150 is offered in a 10-pin, 3mm x 5mm, μMAX® package and is specified over the -40°C to +85°C temperature range.

关键特性

以下关键特性由Maxim美信半导体提供：

High DC/AC Accuracy Improves Measurement Quality

18-Bit Resolution with No Missing Codes

500ksps Throughput Rates Without Pipeline Delay/Latency

93dB SNR and -101.2dB THD at 10kHz

1.9 LSBRMS Transition Noise

±0.5 LSB DNL (typ) and ±3.7 LSB INL (typ)

Highly Integrated ADC Saves Cost and Space

±7ppm/°C Internal Reference

Internal Reference Buffer

Wide Supply Range and Low Power Simplify Power-Supply Design

5V Analog Supply

2.3V to 5V Digital Supply

36.2mW Power Consumption at 500ksps

10µA in Shutdown Mode

Multi-Industry Standard Serial Interface and Small Package Reduces Size

SPI/QSPI™/MICROWIRE®/DSP-CompatibleSerial Interface

3mm x 5mm Tiny 10-Pin µMAX Package

热门应用

自动测试设备

数据采集系统

工业过程控制

医疗仪表
