MAX1605 - 内置30V开关的LCD偏置电源

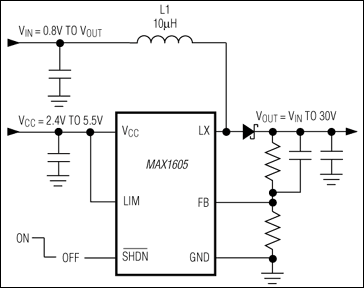

MAX1605是Maxim美信半导体公司的一款DC-DC开关调节器产品，MAX1605是内置30V开关的LCD偏置电源，本站介绍了MAX1605的封装应用图解、特点和优点、功能等，并给出了与MAX1605相关的Maxim元器件型号供参考。

MAX1605 - 内置30V开关的LCD偏置电源 - DC-DC开关调节器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX1605 boost converter contains a 0.5A internal switch in a tiny 6-pin SOT23 package. The IC operates from a +2.4V to +5.5V supply voltage, but can boost battery voltages as low as 0.8V up to 30V at the output.

The MAX1605 uses a unique control scheme providing the highest efficiency over a wide range of load conditions. An internal 0.5A MOSFET reduces external component count, and a high switching frequency (up to 500kHz) allows for tiny surface-mount components. The current limit can be set to 500mA, 250mA, or 125mA, allowing the user to reduce the output ripple and component size in low-current applications.

Additional features include a low quiescent supply current and a shutdown mode to save power. The MAX1605 is ideal for small LCD panels with low current requirements, but can also be used in other applications. A MAX1605EVKIT evaluation kit (EV kit) is available to help speed up design time.

关键特性

以下关键特性由Maxim美信半导体提供：

Adjustable Output Voltage up to 30V

20mA at 20V from a Single Li+ Battery

88% Efficiency

Up to 500kHz Switching Frequency

Selectable Inductor Current Limit (125mA, 250mA, or 500mA)

18µA Operating Supply Current

0.1µA Shutdown Current

Avaiable in Two Small Packages

6-Pin TDFN

6-Pin SOT23

热门应用

蜂窝电话/无绳电话

手持终端

LCD偏置发生器

数字助理

掌上电脑

PDA及其它手持设备
