当前位置:美信半导体 > > 美信芯片 >> MAX1685
MAX1685技术文档下载:
MAX1685技术文档产品手册下载

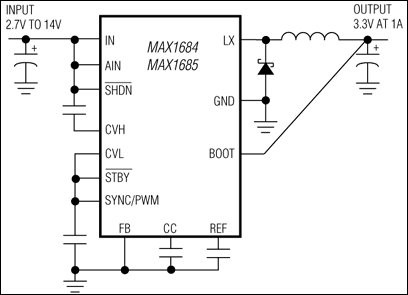

MAX1685 - 典型电路框图:
MAX1685典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX1685介绍
MAX1685 - 低噪声、14V输入、1A、PWM降压型转换器

MAX1685是Maxim美信半导体公司的一款DC-DC开关调节器产品,MAX1685是低噪声、14V输入、1A、PWM降压型转换器,本站介绍了MAX1685的封装应用图解、特点和优点、功能等,并给出了与MAX1685相关的Maxim元器件型号供参考。

MAX1685 - 低噪声、14V输入、1A、PWM降压型转换器 - DC-DC开关调节器 - 尺寸最小的1.5A、降压型DC-DC,用于手持式PC,效率高达96% - 美信半导体

产品概述

The MAX1684/MAX1685 are high-efficiency, internal-switch, pulse-width modulation (PWM) step-down switching regulators intended to power cellular phones, communicating PDAs, and handy-terminals. These devices deliver a guaranteed 1A output current from two lithium-ion (Li+) batteries. Their wide-input voltage range of 2.7V to 14V gives design flexibility and allows batteries to charge from a wall cube, since the ICs operate at the higher voltages that occur when the battery is removed. The output voltage is preset to 3.3V or can be externally adjusted from 1.25V to VIN.

The low on-resistance power switch and built-in synchronous rectifier provide high efficiencies of up to 96%. There are four modes of operation: fixed-frequency, normal, low-power, and shutdown. The fixed-frequency PWM mode of operation offers excellent noise characteristics. The normal mode maintains high efficiency at all loads. The low-power mode is used to conserve power in standby or when full load is not required. The shutdown mode is used to power down the device for minimal current draw.

The MAX1684 runs at 300kHz for applications that require highest efficiency. The MAX1685 runs at 600kHz to allow the use of smaller external components. These devices can also be synchronized to an external clock. Other features include a 100% duty cycle for low-dropout applications, an auxiliary 3V/5mA output, and a 1% accurate reference.

Both devices are available in a space-saving 16-QSOP package. An evaluation kit is also available to help speed designs. For a similar device in a 10-pin µMAX® package with lower input voltage requirements (5.5V max), refer to the MAX1692 data sheet.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • Up to 96% Efficiency
  • 1A Guaranteed Output Current
  • 100% Duty Cycle in Dropout
  • 2.7V to 14V Input Range (15V Absolute Max)
  • ±1% Accurate Reference Output
  • 0.24Ω P-Channel On-Resistance
  • Synchronizable Switching Frequency
  • Fixed-Frequency PWM Operation
  • 300kHz (MAX1684)
  • 600kHz (MAX1685)
  • 150µA Normal-Mode Quiescent Current
  • 25µA Low-Power Mode Quiescent Current
  • 2µA Shutdown Current
  • Dual Mode™ Fixed 3.3V (±1%) Output or Adjustable Output (1.25V to VIN)
  • Small 16-QSOP Package
  • Auxiliary Output (CVL): 3V/5mA
  • 热门应用
  • 蜂窝电话
  • 计算机外设
  • PDA与手持终端
  • 个人通信装置
  • 双向无线装置和对讲机
