MAX17542G - 42V, 1A, Ultra-Small, High-Efficiency,Synchronous Step-Down DC-DC Converter

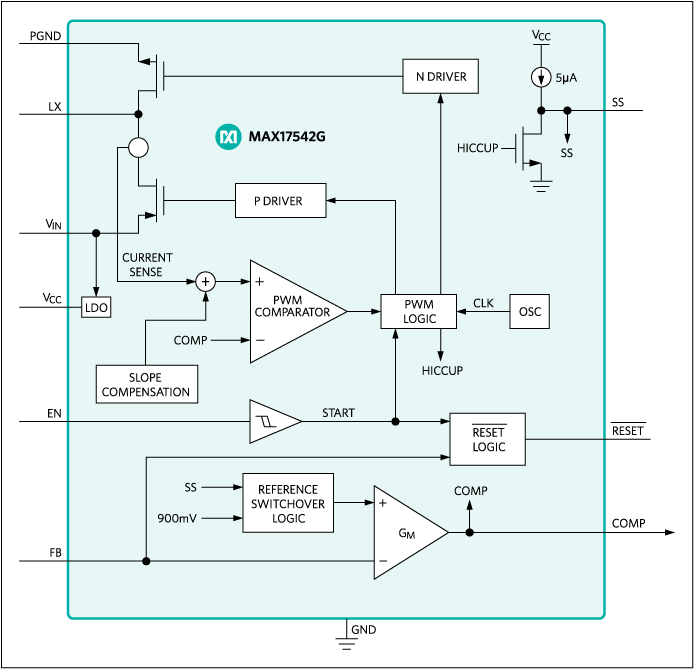

MAX17542G是Maxim美信半导体公司的一款DC-DC开关调节器产品，MAX17542G是42V, 1A, Ultra-Small, High-Efficiency,Synchronous Step-Down DC-DC Converter，本站介绍了MAX17542G的封装应用图解、特点和优点、功能等，并给出了与MAX17542G相关的Maxim元器件型号供参考。

MAX17542G - 42V, 1A, Ultra-Small, High-Efficiency,Synchronous Step-Down DC-DC Converter - DC-DC开关调节器 - 42V Synchronous Buck Converter with Internal FETs Enables High Efficiency - 美信半导体

产品概述

The MAX17542G high-efficiency, high-voltage, synchronousstep-down DC-DC converter with integrated MOSFETsoperates over 4.5V to 42V input. The converter candeliver up to 1A and generates output voltages from 0.9Vup to 0.92 x VIN. The feedback (FB) voltage is accurate towithin ±1.7% over -40°C to +125°C.

The MAX17542G uses peak-current-mode control withpulse-width modulation (PWM) and operates with fixed600kHz switching frequency at any load. The deviceis available in a 10-pin (3mm x 2mm) TDFN package.Simulation models are available.

关键特性

以下关键特性由Maxim美信半导体提供：

Reduces External Components and Total Cost

No Schottky-Synchronous Operation

All-Ceramic Capacitors, Ultra-Compact Layout

Reduces Number of DC-DC Regulators to Stock

Wide 4.5V to 42V Input

Adjustable 0.9V to 92%VIN Output

Delivers Up to 1A

Reduces Power Dissipation

Peak Efficiency > 90%

Shutdown Current = 0.9μA (typ)

Operates Reliably in Adverse Industrial Environments

Hiccup-Mode Current Limit, Sink Current Limit,and Autoretry Startup

Built-In Output-Voltage Monitoring (Active-Low RESET Pin)

Programmable EN/UVLO Threshold

Adjustable Soft-Start and Prebiased Power-Up

-40°C to +125°C Operation

热门应用

基站、VOIP、电信

电池供电设备

null

HVAC与楼宇控制

工业过程控制
