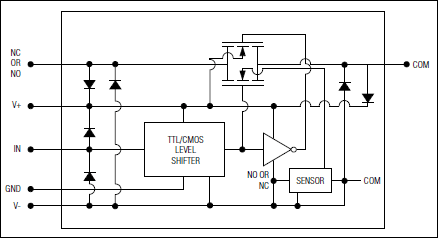

MAX4657 - 典型电路框图：
MAX4657典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX4657介绍

MAX4657 - 大电流、10Ω、SPST、CMOS模拟开关

MAX4657是Maxim美信半导体公司的一款保护器产品，MAX4657是大电流、10Ω、SPST、CMOS模拟开关，本站介绍了MAX4657的封装应用图解、特点和优点、功能等，并给出了与MAX4657相关的Maxim元器件型号供参考。

MAX4657 - 大电流、10Ω、SPST、CMOS模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

Maxim's MAX4655–MAX4658 are medium-voltageCMOS analog switches with low on-resistance of 10Ωmax, specifically designed to handle large switch currents.With a switch capability of up to 400mA peak currentand 300mA continuous current (MAX4655/MAX4656), and up to 300mA peak current and 150mA continuous current (MAX4657/MAX4658), these partscan switch loads as low as 25Ω. They can replace reedrelays with a million times the speed and virtually unlimitednumber of lifetime cycles. Normal power consumptionis only 3mW, whether the switch is on or off. Theseparts are TTL/CMOS compatible and will switch anyvoltage within its power-supply range.

These are SPST (single-pole/single-throw) switches.The MAX4655/MAX4657 are normally closed (NC),while the MAX4656/MAX4658 are normally open (NO).The difference between the MAX4655/MAX4656 andthe MAX4657/MAX4658 is in the power dissipation oftheir packages. Refer to the Absolute Maximum Ratingsand the Electrical Characteristics in the full data sheet.

The MAX4655–MAX4658 power-supply range is from±4.5V to ±20V for dual-supply operation and +9V to+40V for single-supply operation. These switches canoperate from any combination of supplies, within a 40VV+ to V- range. They conduct equally well in either directionand can handle rail-to-rail analog signals. The offleakagecurrent is only 1nA max at TA = +25°C. They areavailable in 8-pin µMAX®, TDFN, and SO packages, withexposed paddle options for high-power applications.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • High Continuous Current Handling
  • 300mA (MAX4655/MAX4656)
  • 150mA (MAX4657/MAX4658)
  • High Peak Current Handling
  • 400mA (MAX4655/MAX4656)
  • 300mA (MAX4657/MAX4658)
  • 10Ω (max) On-Resistance (±15V supplies)
  • VL Not Required
  • 1Ω (max) RON Flatness over Specified Signal Range
  • Rail-to-Rail Signal Handling
  • +12V Single Supply or ±15V Dual Supply Operation
  • Pin Compatible with DG417, DG418
    • 热门应用
  • 音频信号切换
  • 音频系统
  • 通信系统
  • PBX/PABX系统
  • PC多媒体板
  • 冗余/备份系统
  • 继电器替代品
  • 测试设备
  • xDSL调制解调器
