MAX221E - ±15kV ESD保护、+5V、1µA、单路RS-232收发器，带有AutoShutdown

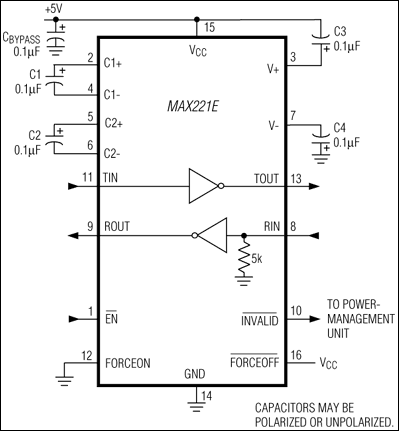

MAX221E是Maxim美信半导体公司的一款驱动器-接收器产品，MAX221E是±15kV ESD保护、+5V、1µA、单路RS-232收发器，带有AutoShutdown，本站介绍了MAX221E的封装应用图解、特点和优点、功能等，并给出了与MAX221E相关的Maxim元器件型号供参考。

MAX221E - ±15kV ESD保护、+5V、1µA、单路RS-232收发器，带有AutoShutdown - 驱动器-接收器 - 业内尺寸最小的低功耗、单通道RS-232收发器，具有±15kV ESD保护 - 美信半导体

产品概述

The MAX221E is a +5V powered, single transmit/receive RS-232 and V.28 communications interface with automatic shutdown/wake-up features and high data rate capabilities.

The MAX221E features enhanced electrostatic discharge (ESD) protection. Both the transmitter output and receiver input are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge Method, to ±8kV using the IEC 1000-4-2 Contact Discharge Method, and to ±15kV using the Human Body Model.

The MAX221E achieves a low 1µA supply current with Maxim's revolutionary AutoShutdown™ feature. AutoShutdown saves power without changes to the existing BIOS or operating system by entering low-power shutdown mode when the RS-232 cable is disconnected or when the transmitter of the connected peripheral is off. The MAX221E wakes up and drives the active-low INVALID pin high when an active RS-232 cable is connected, signaling the host that a peripheral is connected to the communications port.

The MAX221E is available in a 16-pin SSOP package as well as a 16-pin TSSOP that uses 50% less board space than a 16-pin SO.

关键特性

以下关键特性由Maxim美信半导体提供：

Single RS-232 Transceiver in a Small 16-Pin TSSOP

ESD Protection for RS-232 I/O Pins

±15kV-Human Body Model

±8kV-IEC 1000-4-2, Contact Discharge

±15kV-IEC 1000-4-2, Air-Gap Discharge

Latchup Free

1µA Supply Current

AutoShutdown Saves Power without Changes to BIOS

Guaranteed 250kbps Data Rate

热门应用

工业系统

保持/诊断端口

机顶盒

电信
