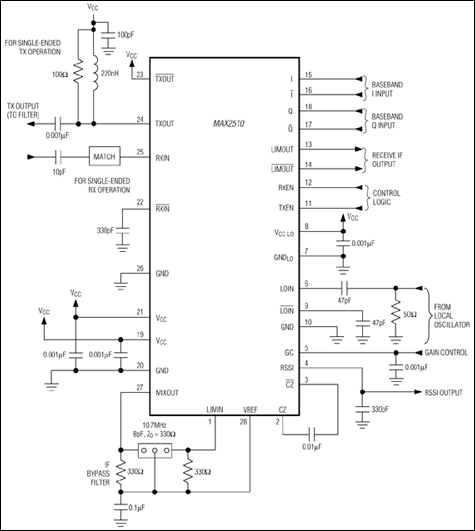

MAX2510 - 典型电路框图：
MAX2510典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX2510介绍

MAX2510 - 低电压IF收发器，带有限幅放大器接收信号强度指示及正交调制器

MAX2510是Maxim美信半导体公司的一款无线与RF产品，MAX2510是低电压IF收发器，带有限幅放大器接收信号强度指示及正交调制器，本站介绍了MAX2510的封装应用图解、特点和优点、功能等，并给出了与MAX2510相关的Maxim元器件型号供参考。

MAX2510 - 低电压IF收发器，带有限幅放大器接收信号强度指示及正交调制器 - 无线与RF - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX2510 is a highly integrated IF transceiver for digitalwireless applications. It operates from a +2.7V to +5.5V supply voltage andfeatures four operating modes for advanced system power management. Supplycurrent is reduced to 0.2µA in shutdown mode.

In a typical application, the receiver downconverts a high IF/RF (up to600MHz) to a low IF (up to 30MHz) using a double-balanced mixer. Additionalfunctions included in the receiver section are an IF buffer that can drive anoff-chip filter, an on-chip limiting amplifier offering 90dB ofreceived-signal-strength indication (RSSI), and a robust differential limiteroutput driver designed to directly drive a CMOS input. The transmitter sectionupconverts I and Q baseband signals to an IF in the 100MHz to 600MHz range usinga quadrature modulator. The transmit output is easily matched to drive a SAWfilter with an adjustable output from 0dBm to -40dBm and excellent linearity.

The MAX2511 has features similar to the MAX2510, but upconverts a low IF withan image-reject mixer. The MAX2511 downconverter also offers image rejection with a limiter/RSSI stage similar to that of the MAX2510.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • +2.7V to +5.5V Single-Supply Operation
  • Complete Receive Path: 600MHz (max) 1st IF to 30MHz (max) 2nd IF
  • Unique, Wide-Dynamic-Range Downconverter Mixer Offers -8dBm IIP3, 11dB NF
  • 90dB Dynamic-Range Limiter with High-Accuracy RSSI Function
  • Differential Limiter Output Directly Drives CMOS Input
  • 100MHz to 600MHz Transmit Quadrature Modulator with 41dB SidebandSuppression
  • 40dB Transmit Gain-Control Range; Up to +1dBm Output Power
  • Advanced Power Management (four modes)
  • 0.2µA Shutdown Supply Current
    • 热门应用
  • 400MHz ISM收发器
  • 中频收发器
  • PACS、PHS、DECT及其它PCS无线手机及基站
  • PWT1900、无线手机和基站
  • 无线数据链接
