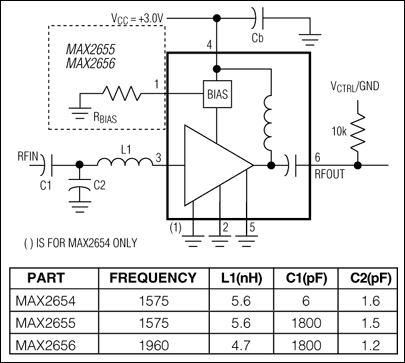

MAX2656 - 典型电路框图：
MAX2656典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX2656介绍

MAX2656 - 1575MHz/1900MHz、可变IP3、低噪声放大器

MAX2656是Maxim美信半导体公司的一款无线与RF产品，MAX2656是1575MHz/1900MHz、可变IP3、低噪声放大器，本站介绍了MAX2656的封装应用图解、特点和优点、功能等，并给出了与MAX2656相关的Maxim元器件型号供参考。

MAX2656 - 1575MHz/1900MHz、可变IP3、低噪声放大器 - 无线与RF - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX2654/MAX2655/MAX2656 high third-order intercept point (IP3), low-noise amplifiers (LNAs) are designed for applications in GPS, PCS, WLL, and satellite phone systems. The MAX2654/MAX2655/MAX2656 incorporate on-chip internal output matching to 50Ω, eliminating the need for external matching components. A shutdown feature in the MAX2654/MAX2655 reduces the operating current to 0.1µA, eliminating the need for an external supply switch.

The MAX2654 operates in the GPS frequency of 1575MHz with 15.1dB of gain, 1.5dB noise figure, and only consumes 5.8mA. The MAX2655 is designed with high-input IP3 to improve operation in cellular applications where the cellular power amplifier leaks into the GPS receiver. The MAX2656 is designed for PCS phone applications with 13.5dB of gain in high-gain mode and 0.8dB of gain in low-gain mode (selected by a logic control) and 1.9dB noise figure.

The IP3 of MAX2655/MAX2656 is adjustable by a single external bias resistor (RBIAS), allowing supply current to be optimized for a specific application.

The MAX2654/MAX2655/MAX2656 operate from a +2.7V to +5.5V single supply and are available in the miniature 6-pin SC70 package.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Low Noise Figure
  • MAX2654: 1.5dB at 1575MHz
  • MAX2655: 1.45dB at 1575MHz
  • MAX2656: 1.9dB at 1960MHz
  • High Gain
  • MAX2654: 15.1dB at 1575MHz
  • MAX2655: 14.1dB at 1575MHz
  • MAX2656: 13.5dB at 1960MHz
  • 12.7dB Gain Step (MAX2656 only)
  • Integrated 50Ω Output Matching
  • Variable IP3 Set by One Bias Resistor (MAX2655/MAX2656 only)
  • 0.1µA Shutdown Mode (MAX2654/MAX2655 only)
  • +2.7V to +5.5V Single-Supply Operation
  • Ultra-Small 6-Pin SC70 Package
    • 热门应用
  • DCS/PCS蜂窝电话
  • 蜂窝电话中的GPS接收机
  • 卫星电话
  • 无线本地环路(WLL)
