产品概述

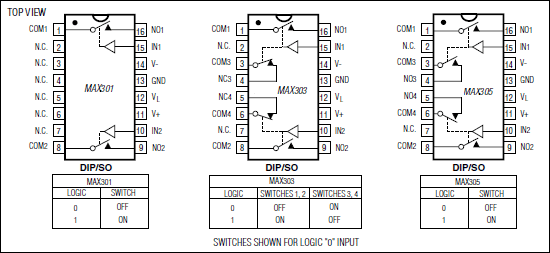

The MAX301/MAX303/MAX305 are precision, dual, highspeedanalog switches. The single-pole single-throw(SPST) MAX301 and double-pole single-throw (DPST)MAX305 dualswitches are normally open (NO). The single-pole double-throw (SPDT) MAX303 has two NO and two normally closed (NC) poles. All three parts offer lowon resistance (less than 35Ω), guaranteed to match towithin 2Ω between channels and to remain flat over thefull analog signal range (Δ3Ω max). They also offer low leakage(less than 250pA at +25°C and less than 6nA at+85°C) and fast switching (turn-on time less than 150nsand turn-off time less than 100ns).

The MAX301/MAX303/MAX305 are fabricated withMaxim's new improved silicon-gate process for highsystem accuracy. Design improvements guaranteeextremely low charge injection (15pC) and low powerconsumption (35µW). A 44V maximum breakdown voltageallows rail-to-rail analog signal capability.

These monolithic switches operate with a single positivesupply (+10V to +30V) or with split supplies (±4.5Vto ±20V) while retaining CMOS-logic input compatibilityand fast switching. CMOS inputs provide reduced inputloading.

关键特性

以下关键特性由Maxim美信半导体提供：

Low On-Resistance < 22Ω Typical (35Ω Max)

Guaranteed Matched On-Resistance Between Channels < 2Ω

Guaranteed Flat On-Resistance over Full Analog Signal Range Δ3Ω Max

Guaranteed Charge Injection < 15pC

Guaranteed Off-Channel Leakage < 6nA at +85°C

Single-Supply Operation (+10V to +30V)

Bipolar-Supply Operation (±4.5V to ±20V)

TTL-/CMOS-Logic Compatible

Rail-to-Rail Analog Signal Handling Capability

热门应用

电池供电应用

通信系统

引导与控制系统

平面显示器

军用无线装置

PBX、PABX

采样保持电路

测试设备
