产品概述

Maxim's MAX312/MAX313/MAX314 analog switches feature low on-resistance (10Ω max) and 1.5Ω on-resistance matching between channels. These switches conduct equally well in either direction. They offer low leakage over temperature (2.5nA at +85°C). Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed.

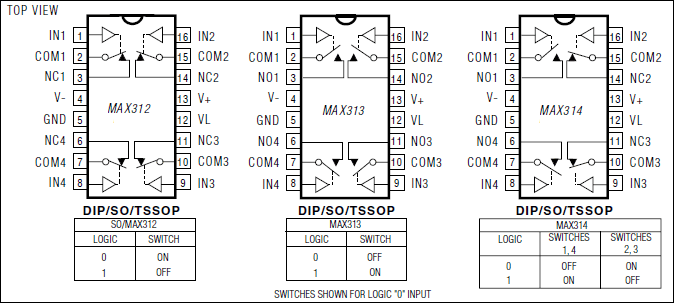

The MAX312/MAX313/MAX314 are quad, single-pole/single-throw (SPST) analog switches. The MAX312 is normally closed (NC), and the MAX313 is normally open (NO). The MAX314 has two NC switches and two NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V.

关键特性

以下关键特性由Maxim美信半导体提供：

Pin Compatible with DG411/DG412/DG413

Low On-Resistance (6.5Ω typical)

Guaranteed RON Match Between Channels (1.5Ω max)

Guaranteed RON Flatness over Specified Signal Range (2Ω max)

Guaranteed ESD Protection > 2000V per Method 3015.7

Crosstalk > 96dB at 20kHz

Single-Supply Operation: +4.5V to +30V Dual-Supply Operation: ±4.5V to ±20V

Rail-to-Rail Signal Handling

热门应用

音频信号切换

航空电子

通信系统

数据采集

PBX/PABX系统

采样保持电路

测试设备
