MAX3182是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3182是+3V至+5.5V、1.5Mbps RS-232接收器，SOT23-5封装，本站介绍了MAX3182的封装应用图解、特点和优点、功能等，并给出了与MAX3182相关的Maxim元器件型号供参考。
MAX3182 - +3V至+5.5V、1.5Mbps RS-232接收器，SOT23-5封装 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体
The MAX3180–MAX3183 are single RS-232 receivers in a SOT23-5 package for space- and cost-constrained applications requiring minimal RS-232 communications. These devices minimize power and heat dissipation by consuming only 0.5µA supply current from a +3.0V to +5.5V supply voltage. They guarantee true RS-232 performance up to a 1.5Mbps data rate.

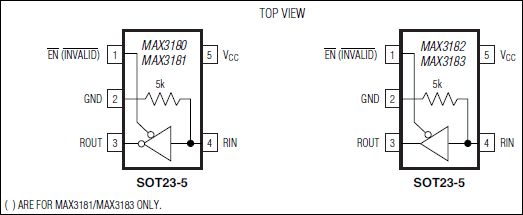

The MAX3180/MAX3182 feature a three-state TTL/CMOS receiver output that is controlled by an active-low EN logic input. The MAX3181/MAX3183 feature an active-low INVALID output that indicates valid RS-232 signals at the receiver input for applications requiring automatic system wake-up. The MAX3180/MAX3181 receivers have a standard inverting output, while the MAX3182/MAX3183 receivers have a noninverting output.
