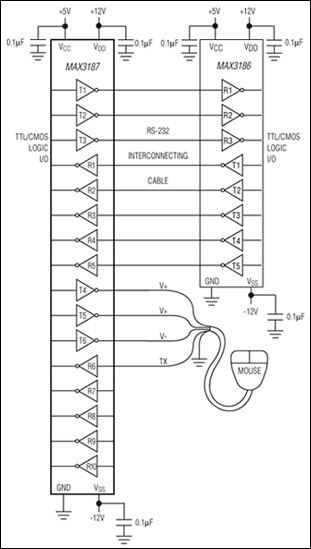

MAX3187是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3187是±15kV ESD保护、符合EMC标准、230kbps、双路RS-232串口，适用于主板/台式机，本站介绍了MAX3187的封装应用图解、特点和优点、功能等，并给出了与MAX3187相关的Maxim元器件型号供参考。

MAX3187 - ±15kV ESD保护、符合EMC标准、230kbps、双路RS-232串口，适用于主板/台式机 - 驱动器-接收器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX3187 complete, dual DTE RS-232 serial port meets the stringent ESD requirements of the European Community. All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model.

The MAX3187's six RS-232 transmitters and ten RS-232 receivers require no charge pump. Guaranteed to run at data rates up to 230kbps, the MAX3187 is optimized for desktop PC and motherboard applications, and is compatible with popular software for PC communications. Power-supply current is less than 1mA for IDD and ISS, and less than 3mA for ICC.

The MAX3187 is available in a space-saving 36-pin SSOP package.

关键特性

以下关键特性由Maxim美信半导体提供：

Enhanced ESD Protection:

±15kV-Human Body Model

±8kV-IEC 1000-4-2, Contact Discharge

±15kV-IEC 1000-4-2, Air-Gap Discharge

Latchup Free During an ESD Event

36-Pin SSOP Package

Guaranteed 230kbps Data Rate

Flow-Through Pinout

Two Complete DTE Serial Ports

6 RS-232 Drivers and 10 RS-232 Receivers

热门应用

计算机：台式机、工作站和服务器

符合IEC 1000-4-2标准的设备

仪表

主板
