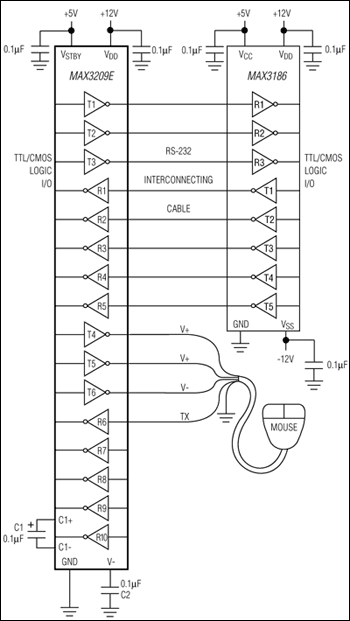

MAX3209E - 典型电路框图：
MAX3209E典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX3209E介绍

MAX3209E - ±15kV ESD保护、12V、双路RS-232串口，带有低功耗待机模式，适用于主板/台式机

MAX3209E是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3209E是±15kV ESD保护、12V、双路RS-232串口，带有低功耗待机模式，适用于主板/台式机，本站介绍了MAX3209E的封装应用图解、特点和优点、功能等，并给出了与MAX3209E相关的Maxim元器件型号供参考。

MAX3209E - ±15kV ESD保护、12V、双路RS-232串口，带有低功耗待机模式，适用于主板/台式机 - 驱动器-接收器 - 低功耗、±15kV ESD保护、双通道RS-232串行接口，TSSOP封装 - 美信半导体

产品概述

The MAX3209E is a complete, dual DTE RS-232 serial port (6 transmitters, 10 receivers) for motherboards and desktop PCs that ensures compliance with the stringent ESD requirements of the European Community. The device minimizes board space and power consumption by eliminating the need for a negative power supply; it integrates two serial ports and a charge pump into a single 38-pin TSSOP package.

The MAX3209E features a 50µA low-power standby mode for compliance with system power-management requirements. During standby, while the device operates from the single +3V to +5.5V logic supply, one receiver on each port remains active, allowing automatic system wake-up when peripheral communications resume.

All transmitter outputs and receiver inputs are protected to ±15kV using IEC 1000-4-2 Air-Gap Discharge, ±8kV using IEC 1000-4-2 Contact Discharge, and ±15kV using the Human Body Model, making the device ideal for use in harsh environments or mission-critical equipment. In addition, the MAX3209E withstands ±4kV per IEC 1000-4-4 Electrical Fast Transient/Burst Stressing. As a result of its robust charge-pump structure, the MAX3209E guarantees mouse driveability and true RS-232 operation at data rates up to 460kbps, ensuring compatibility with PC-to-PC communication software (such as LapLink®).

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Two Complete Serial Ports in a Single 38-Pin TSSOP Package
  • Requires Only +12V Supply and Logic Supply (+3V to +5.5V)
  • No Negative Supply Required
  • One Receiver Active per Port in Standby for System Wake-Up
  • 460kbps Data Rate; LapLink Compatible
  • Enhanced ESD Protection
  • ±15kV—Human Body Model
  • ±8kV—IEC 1000-4-2, Contact Discharge
  • ±15kV—IEC 1000-4-2, Air-Gap Discharge
  • ±4kV Fast Transient Burst Immunity per IEC 1000-4-4
  • Low 50µA Standby Current
  • Operates with Either +3V or +5V Logic
  • Guaranteed Mouse Driveability
  • Small 0.1µF Capacitors
  • Flow-Through Pinout
    • 热门应用
  • 计算机：台式机、工作站和服务器
  • IEC 1000-4-2兼容必备设备
  • 仪表
  • 主板
  • 网络服务器
  • 电信
