产品概述

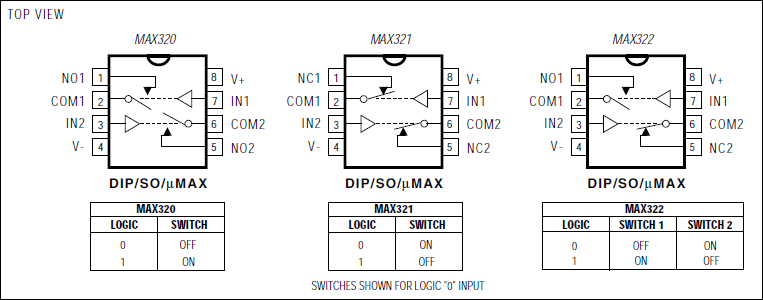

The MAX320/MAX321/MAX322 are precision, dual, SPST analog switches designed to operate from ±3V to ±8V dual supplies. The MAX320 has two normally open (NO) switches and the MAX321 has two normally closed (NC) switches. The MAX322 has one NO and one NC switch. Low power consumption (1.25mW) makes these parts ideal for battery-powered equipment. They offer low leakage currents (100pA max) and fast switching speeds (tON = 150ns max, tOFF = 100ns max).

The MAX320 series, powered from ±5V supplies, offers 35Ω max on-resistance (RON), 2Ω max matching between channels, and 4Ω max RON flatness.

These switches also offer 5pC max charge injection and a minimum of 2000V ESD protection per Method 3015.7.For equivalent devices specified for single-supply operation, see the MAX323/MAX324/MAX325 data sheet. For quad versions of these switches, see the MAX391/MAX392/MAX393 data sheet.

关键特性

以下关键特性由Maxim美信半导体提供：

Low On-Resistance, 35Ω max (16Ω typical)

RON Matching Between Channels < 2Ω

RON Flatness < 4Ω

Guaranteed Charge Injection < 5pC

Bipolar Supply Operation (±3V to ±8V)

Low Power Consumption, < 1.25mW

Low Leakage Current Over Temperature, < 2.5nA at +85°C

Fast Switching, tON < 150ns, tOFF < 100ns

Guaranteed Break-Before-Make (MAX322 only)

热门应用

±5V DAC与ADC

音频与视频开关

电池供电应用

通信系统

引导与控制系统

平面显示器

军用无线装置

PBX、PABX

采样保持电路

测试设备
