MAX3370 - 1µA、2Mbps、低电压电平转换器，SC70和µDFN封装

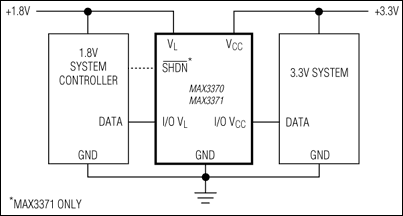

MAX3370是Maxim美信半导体公司的一款电平转换器产品，MAX3370是1µA、2Mbps、低电压电平转换器，SC70和µDFN封装，本站介绍了MAX3370的封装应用图解、特点和优点、功能等，并给出了与MAX3370相关的Maxim元器件型号供参考。

MAX3370 - 1µA、2Mbps、低电压电平转换器，SC70和µDFN封装 - 电平转换器 - 业内尺寸最小的电平转换器，工作电压低至1.6V - 美信半导体

产品概述

The MAX3370/MAX3371 logic-level translators are ideal for applications interfacing low-voltage devices to other logic levels. Externally applied voltages set the logic levels of the MAX3370/MAX3371. The devices accept VCC from +2.5V to +5.5V and VL from +1.6V to +5.5V, allowing data transfer between low-voltage ASICs and higher voltage devices. The MAX3371 features a shutdown mode that reduces supply current to < 1µA and puts the I/O pins in a high-impedance state.

The MAX3370/MAX3371 are bidirectional level shifters, allowing data transfer from the VCC side to the VL side and from the VL side to the VCC side. Both devices operate at speeds up to 2Mbps with an active driver and up to 500kbps with an open-drain driver.

The MAX3370/MAX3371 are available in space-saving µDFN (1mm x 1.5mm) and SC70 packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Allow Bidirectional Level Translation

Miniature µDFN (1mm x 1.5mm) and SC70 Packages

Operational Down to 1.6V

Low Quiescent Current (< 100µA)

Ultra-Low (< 1µA) Shutdown Supply Current (MAX3371)

Three-State Outputs in Shutdown (MAX3371)

2Mbps (10pF Load) Push-Pull Driving

1Mbps (50pF Load) Push-Pull Driving

500kbps (30pF Load) Open-Drain Driving

热门应用

蜂窝电话托架

蜂窝电话免提工具包

低电压ASIC电平转换

便携式通信设备

便携式POS系统

兼容于RS-232的转换器

智能读卡器

SPI™、MICROWIRE™、I²C电平转换器
