MAX3387E - 3V、±15kV ESD保护、AutoShutdown Plus RS-232收发器，用于PDA和蜂窝电话

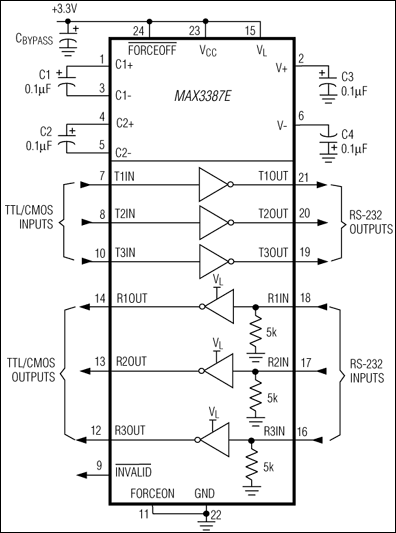

MAX3387E是Maxim美信半导体公司的一款驱动器-接收器产品，MAX3387E是3V、±15kV ESD保护、AutoShutdown Plus RS-232收发器，用于PDA和蜂窝电话，本站介绍了MAX3387E的封装应用图解、特点和优点、功能等，并给出了与MAX3387E相关的Maxim元器件型号供参考。

MAX3387E - 3V、±15kV ESD保护、AutoShutdown Plus RS-232收发器，用于PDA和蜂窝电话 - 驱动器-接收器 - 独立的逻辑供电电源确保兼容混合ASIC逻辑电平 - 美信半导体

产品概述

The MAX3387E 3V powered EIA/TIA-232 and V.28/V.24 is a communications interface with low power requirements, high data-rate capabilities, and enhanced electrostatic discharge (ESD) protection. The MAX3387E has three receivers and three transmitters. All RS-232 inputs and outputs are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, ±8kV using the IEC 1000-4-2 Contact Discharge method, and ±15kV using the Human Body Model.

A proprietary low-dropout transmitter output stage enables true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a +3.3V supply. The MAX3387E is capable of running at data rates up to 250kbps while maintaining RS-232 compliant output levels.

The MAX3387E has a unique VL pin that allows interoperation in mixed-logic voltage systems. Both input and output logic levels are pin programmable through the VL pin. The MAX3387E is available in a space-saving TSSOP package.

关键特性

以下关键特性由Maxim美信半导体提供：

VL Pin for Compatibility with Mixed-Voltage Systems

±15kV ESD Protection on Rx Inputs and Tx Outputs

Low 300µA Supply Current

Guaranteed 250kbps Data Rate

1µA AutoShutdown Plus™ with Receivers Active

Meets EIA/TIA-232 Specifications Down to 3.0V

热门应用

电池供电应用

蜂窝数据电缆

手持式装置

PDA与PDA托架

外设

亚笔记本与掌上电脑
