MAX3890 - +3.3V、2.5Gbps、SDH/SONET 16:1串行器，带有时钟合成及LVDS输入

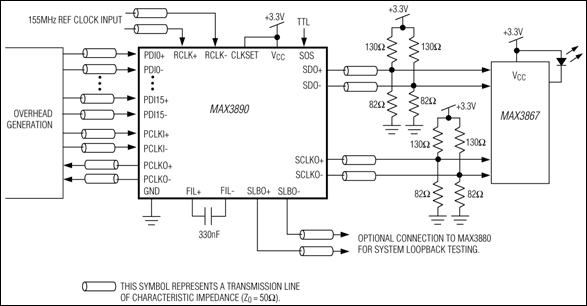

MAX3890是Maxim美信半导体公司的一款高速互联(差分信号链路)产品，MAX3890是+3.3V、2.5Gbps、SDH/SONET 16:1串行器，带有时钟合成及LVDS输入，本站介绍了MAX3890的封装应用图解、特点和优点、功能等，并给出了与MAX3890相关的Maxim元器件型号供参考。

MAX3890 - +3.3V、2.5Gbps、SDH/SONET 16:1串行器，带有时钟合成及LVDS输入 - 高速互联(差分信号链路) - 低功耗、低成本收发器芯片组 - 美信半导体

产品概述

The MAX3890 serializer is ideal for converting 16-bit-wide, 155Mbps parallel data to 2.5Gbps serial data in ATM and SDH/SONET applications. Operating from a single +3.3V supply, this device accepts low-voltage differential-signal (LVDS) clock and data inputs for interfacing with high-speed digital circuitry, and delivers PECL serial data and clock outputs. A fully integrated PLL synthesizes an internal 2.5GHz serial clock from a 155.52MHz, 77.76MHz, 51.84MHz, or 38.88MHz reference clock. A loopback data output is provided to facilitate system diagnostic testing.

The MAX3890 is available in the extended temperature range (-40°C to +85°C) in a 64-pin TQFP exposed- paddle (EP) package.

关键特性

以下关键特性由Maxim美信半导体提供：

Single +3.3V Supply

495mW Power Consumption

Exceeds ANSI, ITU, and Bellcore Specifications

155Mbps (16-bit wide) Parallel to 2.5Gbps Serial Conversion

Clock Synthesis for 2.5Gbps

Multiple Clock Reference Frequencies (155.52MHz, 77.76MHz, 51.84MHz, 38.88MHz)

LVDS Parallel Clock and Data Inputs

Additional High-Speed Output for System Loopback Testing

热门应用

2.5Gbps ATM/SONET接入节点

2.5Gbps SDH/SONET传输系统

上/下路复用器

ATM背板

数字交叉连接
