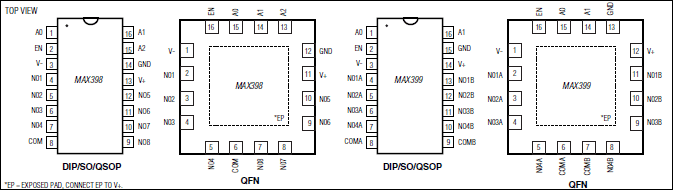

MAX398 - 典型电路框图：
MAX398典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX398介绍

MAX398 - 高精度、8通道/双4通道、低电压、CMOS模拟多路复用器

MAX398是Maxim美信半导体公司的一款保护器产品，MAX398是高精度、8通道/双4通道、低电压、CMOS模拟多路复用器，本站介绍了MAX398的封装应用图解、特点和优点、功能等，并给出了与MAX398相关的Maxim元器件型号供参考。

MAX398 - 高精度、8通道/双4通道、低电压、CMOS模拟多路复用器 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX398/MAX399 precision, monolithic, CMOS analog multiplexers (muxes) offer low on-resistance (less than 100Ω), which is matched to within 6Ω between channels and remains flat over the specified analog signal range (11Ω max). They also offer low leakage over temperature (NO off-leakage current less than 2.5nA at +85°C) and fast switching speeds (transition time less than 250ns). The MAX398 is an 8-channel device, and the MAX399 is a dual 4-channel device.

The MAX398/MAX399 are fabricated with Maxim's low-voltage silicon-gate process. Design improvements yield extremely low charge injection (less than 5pC) and guarantee electrostatic discharge protection (ESD) greater than 2000V.

These muxes operate with a single +3V to +15V supply or bipolar ±3V to ±8V supplies, while retaining CMOS-logic input compatibility and fast switching. CMOS inputs provide reduced input loading. The MAX398/MAX399 are pin compatible with the industry-standard DG408, DG409, DG508A, and DG509A.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Pin Compatible with Industry-Standard DG408/DG409/DG508A/DG509A
  • Guaranteed On-Resistance Match Between Channels (< 6Ω)
  • Low On-Resistance (< 100Ω)
  • Guaranteed Flat On-Resistance over Signal Range (< 11Ω)
  • Guaranteed Low Charge Injection (< 5pC)
  • NO Off-Leakage Current < 1nA at +85°C
  • COM Off-Leakage Current < 2.5nA at +85°C
  • ESD Protection > 2000V
  • +3V to +15V Single-Supply Operation ±3V to ±8V Bipolar-Supply Operation
  • Low Power Consumption (< 300µW)
  • Rail-to-Rail Signal Handling
  • TTL/CMOS-Logic Compatible
    • 热门应用
  • 音频信号切换
  • 自动测试设备(ATE)
  • 电池供电应用
  • 通信系统
  • 引导与控制系统
  • 平面显示器
  • 低电压数据采集
  • 军用无线装置
  • PBX、PABX
  • 采样保持电路
