MAX4041 - 单/双/四路、低成本、SOT23封装、微功耗、满摆幅输入/输出运算放大器

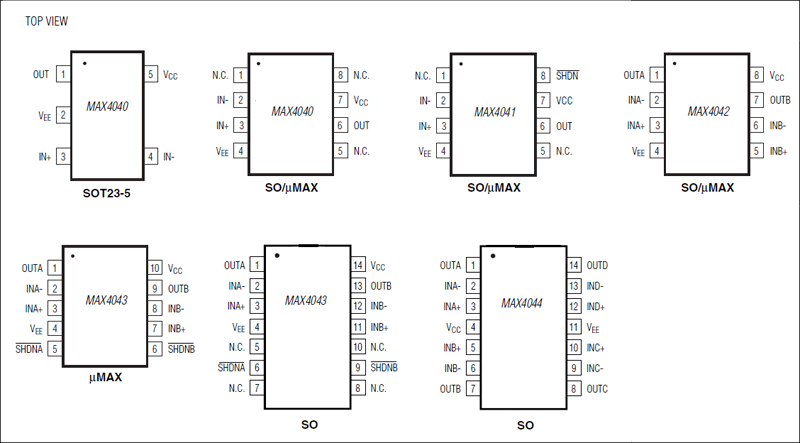

MAX4041是Maxim美信半导体公司的一款放大器产品，MAX4041是单/双/四路、低成本、SOT23封装、微功耗、满摆幅输入/输出运算放大器，本站介绍了MAX4041的封装应用图解、特点和优点、功能等，并给出了与MAX4041相关的Maxim元器件型号供参考。

MAX4041 - 单/双/四路、低成本、SOT23封装、微功耗、满摆幅输入/输出运算放大器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4040–MAX4044 family of micropower op ampsoperates from a single +2.4V to +5.5V supply or dual±1.2V to ±2.75V supplies and have rail-to-rail input andoutput capabilities. These amplifiers provide a 90kHzgain-bandwidth product while using only 10µA of supplycurrent per amplifier. The MAX4041/MAX4043 have alow-power shutdown mode that reduces supply currentto less than 1µA and forces the output into a high-impedancestate. The combination of low-voltage operation,rail-to-rail inputs and outputs, and ultra-low power consumptionmakes these devices ideal for anyportable/battery-powered system.

These amplifiers have outputs that typically swing towithin 10mV of the rails with a 100kΩ load. Rail-to-railinput and output characteristics allow the full power-supplyvoltage to be used for signal range. The combinationof low input offset voltage, low input bias current,and high open-loop gain makes them suitable for low-power/low-voltage precision applications.

The MAX4040 is offered in a space-saving 5-pin SOT23package. All specifications are guaranteed over the-40°C to +85°C extended temperature range.

关键特性

以下关键特性由Maxim美信半导体提供：

Single-Supply Operation Down to +2.4V

Ultra-Low Power Consumption:

10µA Supply Current per Amplifier

1µA Shutdown Mode (MAX4041/MAX4043)

Rail-to-Rail Input Common-Mode Range

Outputs Swing Rail-to-Rail

No Phase Reversal for Overdriven Inputs

200µV Input Offset Voltage

Unity-Gain Stable for Capacitive Loads up to 200pF

90kHz Gain-Bandwidth Product

Available in Space-Saving 5-Pin SOT23 and 8-Pin µMAX® Packages

热门应用

电池供电系统

蜂窝手机

蜂窝电话

数码相机(DIGICAM)

数字测量

GPS方案

MP3和便携式媒体播放器

笔记本电脑

PDA

便携/电池供电的电子设备

传感器放大器

应变仪
