MAX4198 - 微功耗、单电源、满摆幅、精密差分放大器

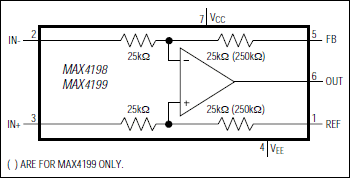

MAX4198是Maxim美信半导体公司的一款放大器产品，MAX4198是微功耗、单电源、满摆幅、精密差分放大器，本站介绍了MAX4198的封装应用图解、特点和优点、功能等，并给出了与MAX4198相关的Maxim元器件型号供参考。

MAX4198 - 微功耗、单电源、满摆幅、精密差分放大器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4198/MAX4199 low-power, rail-to-rail differential amplifiers are ideal for single-supply applications that benefit from a low 0.01% gain error. The MAX4198 is factory trimmed to a fixed gain of +1V/V, and the MAX4199 is trimmed to a fixed gain of +10V/V. Capable of operating from a single +2.7V to +7.5V supply or from dual ±1.35V to ±3.75V supplies, they consume only 42µA while achieving -3dB bandwidths of 175kHz (MAX4198) and 45kHz (MAX4199). These amplifiers feature a shutdown mode that reduces the supply current to 6.5µA.

The MAX4198/MAX4199 can drive 5kΩ loads to within 100mV from each rail. The standard differential amplifier configurations provide common-mode rejection of 90dB for the MAX4198 and 110dB for the MAX4199. The input common-mode voltage range for the MAX4198 extends 100mV Beyond-the-Rails™.

The MAX4198/MAX4199 are offered in a space-saving 8-pin µMAX® package. For complete micropower, rail-to-rail instrumentation amplifiers, see the MAX4194-MAX4197 data sheet.

关键特性

以下关键特性由Maxim美信半导体提供：

Low 0.01% Gain Error

High Common-Mode Rejection: 110dB (MAX4199)

10µV Input Offset Voltage (MAX4199)

30µV Input Offset Voltage (MAX4198)

+2.7V to +7.5V Single-Supply Operation

42µA Supply Current

175kHz (MAX4198) and 45kHz (MAX4199) -3dB Bandwidth

6.5µA Shutdown Current

Rail-to-Rail Outputs Drive 5kΩ Loads

Input Voltage Range Extends 100mV Beyond-the-Rails (MAX4198)

Available in Space-Saving 8-Pin µMAX Package

热门应用

电流检测放大器

数据采集

差分电压放大

仪表放大器电路

便携式电池供电设备

变送器接口
