MAX44211 - High-Current Differential Line Driver for Powerline Communications

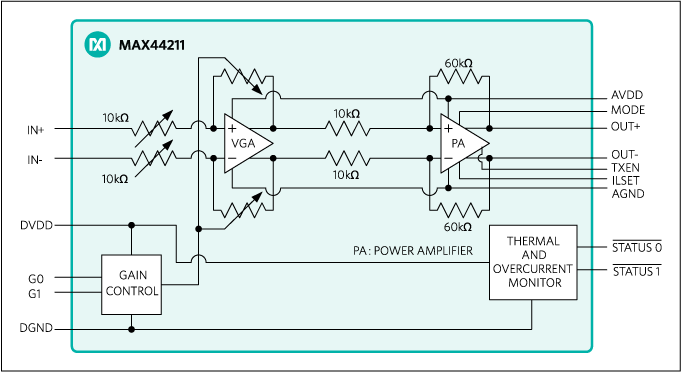

MAX44211是Maxim美信半导体公司的一款放大器产品，MAX44211是High-Current Differential Line Driver for Powerline Communications，本站介绍了MAX44211的封装应用图解、特点和优点、功能等，并给出了与MAX44211相关的Maxim元器件型号供参考。

MAX44211 - High-Current Differential Line Driver for Powerline Communications - 放大器 - Industry's Smallest, Lowest Power Line Driver for ARIB, CENELEC, and FCC Powerline Standards - 美信半导体

产品概述

The MAX44211 is a low-distortion line driver customized for powerline communication (PLC) applications where high output current is needed to drive the isolation and coupling transformer under varying load conditions. The MAX44211 can be switched to implement all world standards, trading off improved linearity for increased quiescent current. The MAX44211 delivers a high 1.5A linear output current and provides peak-to-peak differential voltage swing of up to 36V. The MAX44211 features very low intermodulation and harmonic distortion ensuring they meet worldwide PLC standards.

The MAX44211 features advanced diagnostics for temperature and output current monitoring. There are high temperature warning and over temperature shutdown functions. There is also a programmable current limit. The status of these diagnostics are indicated via two open-drain status outputs.

The MAX44211 is designed to interface to powerlines that have wide ranging and variable loads and drive signals within the 9kHz to 500kHz frequency band. This device operates from a single supply and is available in a 4mm x 4mm, 20-pin TQFN package.

The MAX44211 device is specified for operation from -40°C to +85°C.

关键特性

以下关键特性由Maxim美信半导体提供：

Meets Stringent ARIB, FCC, and CENELEC Linearity Specifications for Out-of-Band Emissions

Output Drives Current Linearly Up to 1.5A Peak Into a Reactive Load for PLC Applications

Output Voltage Swings to Within 0.5V of AVDD or AGND (36VP-P Differential) for Widest Dynamic Range

Wide Power-Supply Range Addresses Multiple Standards:

+8V to +20V for Analog Supply

+2.7V to +5.5V for Digital Supply

Programmable Output Current Limit via External Resistor Provides Flexibility

Programmable Gain (6x, 12x, 15x, or 18x) via Gain Inputs Provides Multistandard Usage

Status Logic Outputs Provide Improved Diagnostics

Overtemperature Shutdown Active

High-Temperature Warning Active

Overcurrent Active

Normal Operation

热门应用

照明

null

智能表

null
