MAX4540 - 低电压、单8选1及双4选1，带有校准的多路复用器

MAX4540是Maxim美信半导体公司的一款保护器产品，MAX4540是低电压、单8选1及双4选1，带有校准的多路复用器，本站介绍了MAX4540的封装应用图解、特点和优点、功能等，并给出了与MAX4540相关的Maxim元器件型号供参考。

MAX4540 - 低电压、单8选1及双4选1，带有校准的多路复用器 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

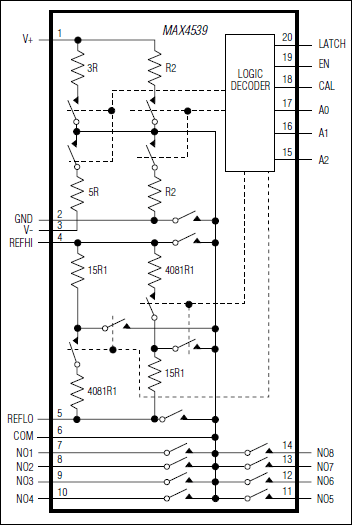

The MAX4539/MAX4540 low-voltage, CMOS 8-channel (MAX4539) and dual 4-channel (MAX4540) multiplexers are ideal for precision ADC calibration and system self-monitoring applications. These calibration multiplexers (cal-muxes) have precision resistor-dividers to generate accurate voltage ratios from an input reference voltage. The reference ratios include 15/4096 and 4081/4096 of the external reference voltage, accurate to 15 bits, and 1/2V+ and 5/8(V+ - V-), accurate to 8 bits. The external reference voltage as well as ground can also be switched to the output. The MAX4539/MAX4540 have enable inputs and address latching. All digital inputs have 0.8V and 2.4V logic thresholds, ensuring both TTL- and CMOS-logic compatibility when using a ±5V or a single +5V supply. Protection diodes at all inputs provide an ESD rating >2kV.

The MAX4539/MAX4540 operate from a single +2.7V to +12V supply, or from dual supplies of ±2.7V to ±6V. On-resistance (100Ω max) is matched between switches to 6Ω max. Each switch can handle rail-to-rail analog signals. The off leakage current is 0.1nA at TA = +25°C and 2nA at TA = +85°C.

The MAX4539/MAX4540 are available in small 20-pin DIP, SO, and SSOP packages.

关键特性

以下关键特性由Maxim美信半导体提供：

On-Chip Gain and Offset Divider Networks Provide 15-Bit Accurate Output Ratios

On-Chip V+ to GND and V+ to V- Divider Networks Provide 8-Bit Accurate Output Ratios

RON: 100Ω max

RON Matching Between Channels: 6Ω max

Charge Injection: 5pC max

Low 0.1nA Off Leakage Current

Small 20-Pin SSOP/SO/DIP Packages

热门应用

音频信号切换

航空电子

电池供电应用

数据采集

网络

测试设备
