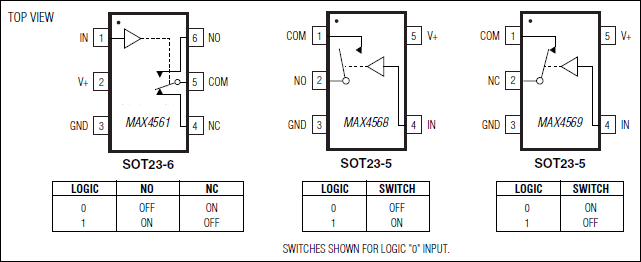

MAX4561 - 典型电路框图：
MAX4561典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX4561介绍

MAX4561 - ±15kV ESD保护、低电压、SPDT/SPST、CMOS模拟开关

MAX4561是Maxim美信半导体公司的一款保护器产品，MAX4561是±15kV ESD保护、低电压、SPDT/SPST、CMOS模拟开关，本站介绍了MAX4561的封装应用图解、特点和优点、功能等，并给出了与MAX4561相关的Maxim元器件型号供参考。

MAX4561 - ±15kV ESD保护、低电压、SPDT/SPST、CMOS模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4561/MAX4568/MAX4569 are low-voltage, ESD-protected analog switches. The normally open (NO) and normally closed (NC) inputs are protected against ±15kV electrostatic discharge (ESD) without latchup or damage, and the COM input is protected against 2.5kV ESD.

These switches operate from a single +1.8V to +12V supply. The 70Ω at 5V (120Ω at 3V) on-resistance is matched between channels to 2Ω max, and is flat (4Ω max) over the specified signal range. The switches can handle rail-to-rail analog signals. Off-leakage current is only 0.5nA at +25°C and 5nA at +85°C. The digital input has +0.8V to +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply. The MAX4561 is a single-pole/double-throw (SPDT) switch. The MAX4568 NO and MAX4569 NC are single-pole/single-throw (SPST) switches.

The MAX4561 is available in a 6-pin SOT23 package, and the MAX4568/MAX4569 are available in 5-pin SOT23 packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • ESD-Protected NO, NC
  • ±15kV—Human Body Model
  • ±15kV—IEC 1000-4-2, Air-Gap Discharge
  • ±8kV—IEC 1000-4-2, Contact Discharge
  • Guaranteed On-Resistance
  • 70Ω +5V Supply
  • 120Ω with Single +3V Supply
  • On-Resistance Match Between Channels (2Ω max)
  • Low On-Resistance Flatness: 4Ω max
  • Guaranteed Low Leakage Currents
  • 0.5nA Off-Leakage (at TA = +25°C)
  • 0.5nA On-Leakage (at TA = +25°C)
  • Guaranteed Break-Before-Make at 5ns (MAX4561 only)
  • Rail-to-Rail Signal Handling Capability
  • TTL/CMOS-Logic Compatible with +5V Supplies
  • Industry Standard Pin-Outs
  • MAX4561 Pin Compatible with MAX4544
  • MAX4568/MAX4569 Pin Compatible with MAX4514/MAX4515
