MAX4595 - 低电压、单电源、10Ω、SPST、CMOS模拟开关

MAX4595是Maxim美信半导体公司的一款宽带交换产品，MAX4595是低电压、单电源、10Ω、SPST、CMOS模拟开关，本站介绍了MAX4595的封装应用图解、特点和优点、功能等，并给出了与MAX4595相关的Maxim元器件型号供参考。

MAX4595 - 低电压、单电源、10Ω、SPST、CMOS模拟开关 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

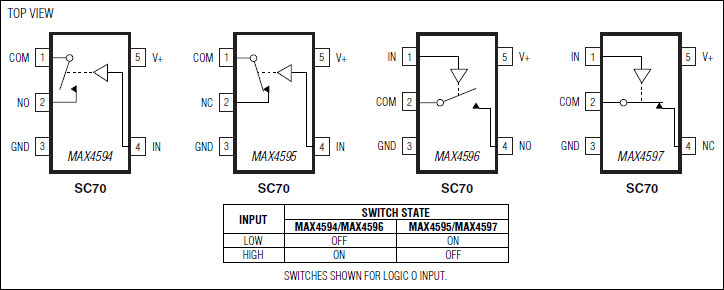

The MAX4594–MAX4597 single-pole/single-throw(SPST) analog switches operate from a single +2.0V to+5.5V supply. The MAX4594/MAX4596 switches arenormally open (NO), and the MAX4595/MAX4597 arenormally closed (NC). The MAX4596/MAX4597 pinoutsare optimized for the highest SC70 package off-isolationavailable.

These switches have 10Ω max on-resistance (RON),with 1.5Ω max RON flatness over the analog signal range when powered from a +5V supply. TheMAX4594–MAX4597 offer low 0.5nA leakage currentsand fast switching times less than 40ns. They are packagedin an ultra-small 5-pin SC70 and 6-pin µDFN.

关键特性

以下关键特性由Maxim美信半导体提供：

Available in 5-Pin SC70 and 6-Pin µDFN Packages

10Ω max On-Resistance

1.5Ω max On-Resistance Flatness

Fast Switching

tON = 35ns max

tOFF = 40ns max

Guaranteed 5pC max Charge Injection

+2.0V to +5.5V Single-Supply Operation

300MHz -3dB Bandwidth at +25°C

TTL/CMOS-Logic Compatible

-80dB Off-Isolation at 1MHz

0.5nA max Off-Leakage

0.05% THD

热门应用

音频/视频信号切换

电池供电设备

蜂窝电话

通信电路

DSL调制解调器

PCMCIA卡
