MAX4612 - 低电压、四路、SPST、CMOS模拟开关

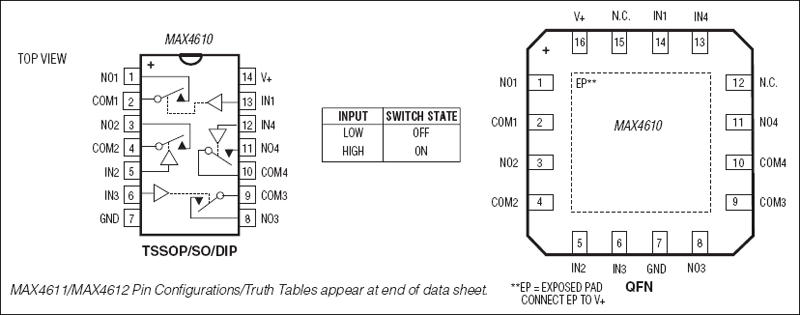

MAX4612是Maxim美信半导体公司的一款保护器产品，MAX4612是低电压、四路、SPST、CMOS模拟开关，本站介绍了MAX4612的封装应用图解、特点和优点、功能等，并给出了与MAX4612相关的Maxim元器件型号供参考。

MAX4612 - 低电压、四路、SPST、CMOS模拟开关 - 保护器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4610/MAX4611/MAX4612 are quad, low-voltage, single-pole/single-throw (SPST) analog switches. On-resistance (100Ω, max) is matched between switches to 4Ω, max and is flat (4Ω, max) over the specified signal range. Each switch handles V+ to GND analog signal levels. Maximum off-leakage current is only 1nA at TA = +25°C and 2nA at TA = +85°C.

The MAX4610 has four normally open (NO) switches, and the MAX4611 has four normally closed (NC) switches. The MAX4612 has two NO switches and two NC switches. These CMOS switches operate from a single +2V to +12V supply. All digital inputs have +0.8V and +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply.

关键特性

以下关键特性由Maxim美信半导体提供：

Offered in Automotive Temperature Range (-40°C to +125°C)

Guaranteed On-Resistance

100Ω max (5V Supply)

46Ω max (12V Supply)

Guaranteed Match Between Channels (4Ω, max)

Guaranteed Flatness Over Signal Range (18Ω, max)

Off-Leakage Current Over Temperature

< 2nA at TA = +85°C

> 2kV ESD Protection per Method 3015.7

Rail-to-Rail Signal Handling

TTL/CMOS-Logic Compatible

热门应用

音频/视频信号切换

电池供电设备

通信电路

低电压数据采集系统

采样保持电路
