MAX4628 - 0.5Ω、低电压、单电源SPST模拟开关

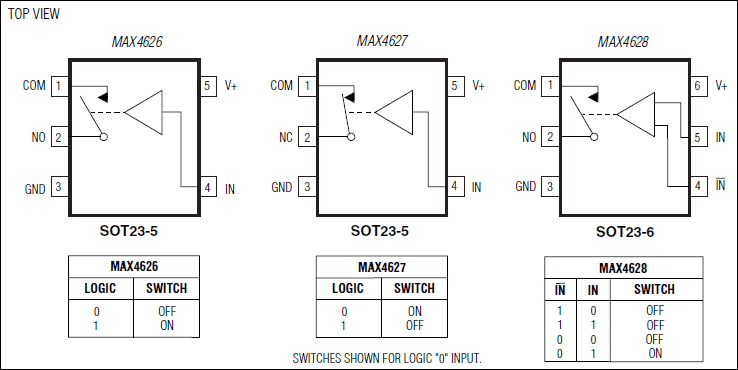

MAX4628是Maxim美信半导体公司的一款宽带交换产品，MAX4628是0.5Ω、低电压、单电源SPST模拟开关，本站介绍了MAX4628的封装应用图解、特点和优点、功能等，并给出了与MAX4628相关的Maxim元器件型号供参考。

MAX4628 - 0.5Ω、低电压、单电源SPST模拟开关 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4626/MAX4627/MAX4628 are low-on-resistance, low-voltage, single-pole/single-throw (SPST) analog switches that operate from a +1.8V to +5.5V single supply. The MAX4626 is normally open (NO), and the MAX4627 is normally closed (NC). The MAX4628 is normally open (NO) and has two control inputs. These devices also have fast switching speeds (tON = 50ns max, tOFF = 30ns max).

When powered from a +5V supply, the MAX4626/ MAX4627/MAX4628 offer 0.5Ω max on-resistance (RON) with 0.1Ω max RON flatness, and their digital logic inputs are TTL compatible. These switches also feature overcurrent protection to prevent device damage from short circuits and excessive loads.

The MAX4626 is pin compatible with the MAX4514, and the MAX4627 is pin compatible with the MAX4515. The MAX4626/MAX4627 are available in SOT23-5 packages; the MAX4628 is available in a SOT23-6 package.

关键特性

以下关键特性由Maxim美信半导体提供：

Low RON

0.5Ω max (+5V Supply)

0.9Ω max (+3V Supply)

0.1Ω max RON Flatness (+5V Supply)

Overcurrent Protection

Single-Supply Operation (+1.8V to +5.5V)

Available in SOT23 Packages

Fast Switching: tON = 50ns max, tOFF = 30ns max

TTL-Logic Compatible at +5V

Pin Compatible with MAX4514 (MAX4626)

Pin Compatible with MAX4515 (MAX4627)

热门应用

音频/视频信号切换

电池供电应用

蜂窝电话

通信系统

硬盘驱动器

低电压数据采集

调制解调器

PCMCIA卡

电源切换
