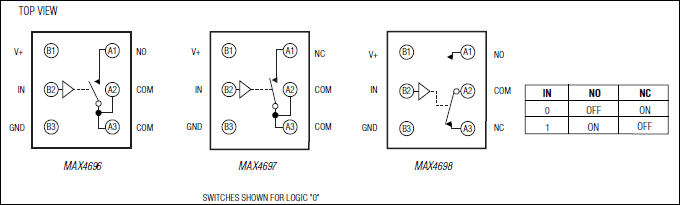

MAX4696是Maxim美信半导体公司的一款宽带交换产品，MAX4696是35Ω、低电压、SPST/SPDT模拟开关，UCSP封装，本站介绍了MAX4696的封装应用图解、特点和优点、功能等，并给出了与MAX4696相关的Maxim元器件型号供参考。

MAX4696 - 35Ω、低电压、SPST/SPDT模拟开关，UCSP封装 - 宽带交换 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX4696/MAX4697/MAX4698 low on-resistance (RON), low-voltage analog switches operate from a single +2.0V to +5.5V supply. The MAX4696/MAX4697 are single-pole/single-throw (SPST) analog switches, and the MAX4698 is a single-pole/double-throw (SPDT) analog switch. The MAX4696 is a normally open (NO) switch, and the MAX4697 is a normally closed (NC) switch.

When powered from a 2.7V supply, these devices feature 35Ω (max) RON, with 2Ω (max) RON matching and 13Ω (max) flatness. The MAX4696/MAX4697/MAX4698 offer fast switching speeds (tON = 80ns max, tOFF = 25ns max). The MAX4698 offers a break-before-make function.

The digital logic inputs are 1.8V logic compatible from a +2.7V to +3.3V supply and are TTL/CMOS compatible from a +4.5V to +5.5V supply. The MAX4696/MAX4697/ MAX4698 are packaged in the chip-scale package (UCSP™), significantly reducing the required PC board area. The device occupies only a 1.50mm x 1.02mm area. The 3 x 2 array of solder bumps are spaced with a 0.5mm bump pitch.

关键特性

以下关键特性由Maxim美信半导体提供：

6-Bump, 0.5mm Pitch, UCSP

RON

35Ω max (+3V Supply)

20Ω max (+5V Supply)

2Ω max RON Match Between Channels

13Ω max RON Flatness Over Signal Range

Low Leakage Currents Over Temperature

1nA (max) at TA = +25°C

Fast Switching: tON = 80ns, tOFF = 25ns

Guaranteed Break-Before-Make (MAX4698)

+2.0V to +5.5V Single-Supply Operation

Rail-to-Rail® Signal Handling

Low Crosstalk: -75dB (100kHz)

High Off-Isolation: -75dB (100kHz)

1.8V CMOS Logic Compatible

-3dB Bandwidth: >200MHz

热门应用

音频/视频信号切换

电池供电设备

蜂窝电话

通信电路

硬盘驱动器

调制解调器

MP3播放器

PCMCIA卡

继电器替代品
