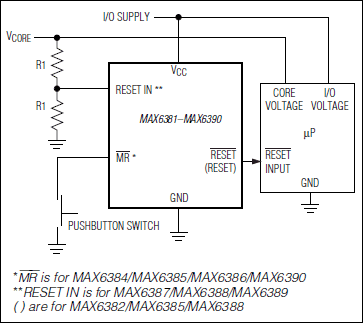

MAX6387 - 典型电路框图：
MAX6387典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX6387介绍

MAX6387 - SC70/µDFN封装、单/双路、低电压、低功耗、微处理器复位电路

MAX6387是Maxim美信半导体公司的一款监控电路、电压监测、排序产品，MAX6387是SC70/µDFN封装、单/双路、低电压、低功耗、微处理器复位电路，本站介绍了MAX6387的封装应用图解、特点和优点、功能等，并给出了与MAX6387相关的Maxim元器件型号供参考。

MAX6387 - SC70/µDFN封装、单/双路、低电压、低功耗、微处理器复位电路 - 监控电路、电压监测、排序 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The MAX6381–MAX6390 microprocessor (µP) supervisory circuits monitor power-supply voltages from +1.8V to +5.0V while consuming only 3µA of supply current at +1.8V. Whenever VCC falls below the factory-set reset thresholds, the reset output asserts and remains asserted for a minimum reset timeout period after VCC rises above the reset threshold. Reset thresholds are available from +1.58V to +4.63V, in approximately 100mV increments. Seven minimum reset timeout delays ranging from 1ms to 1200ms are available.

The MAX6381/MAX6384/MAX6387 have a push-pull active-low reset output. The MAX6382/MAX6385/MAX6388 have a push-pull active-high reset output, and the MAX6383/MAX6386/MAX6389/MAX6390 have an open-drain active-low reset output. The MAX6384/MAX6385/MAX6386 also feature a debounced manual reset input (with internal pullup resistor). The MAX6387/MAX6388/MAX6389 have an auxiliary input for monitoring a second voltage. The MAX6390 offers a manual reset input with a longer VCC reset timeout period (1120ms or 1200ms) and a shorter manual reset timeout (140ms or 150ms).

The MAX6381/MAX6382/MAX6383 are available in 3-pin SC70 and 6-pin µDFN packages and the MAX6384–MAX6390 are available in 4-pin SC70 and 6-pin µDFN packages.

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Factory-Set Reset Threshold Voltages Ranging from +1.58V to +4.63V in Approximately 100mV Increments
  • ±2.5% Reset Threshold Accuracy Over Temperature (-40°C to +125°C)
  • Seven Reset Timeout Periods Available: 1ms, 20ms, 140ms, 280ms, 560ms, 1120ms, 1200ms (min)
  • 3 Reset Output Options
  • Active-Low Push-Pull
  • Active-High Push-Pull
  • Active-Low Open-Drain
  • Reset Output State Guaranteed Valid Down to VCC = 1V
  • Manual Reset Input (MAX6384/MAX6385/MAX6386)
  • Auxiliary RESET IN (MAX6387/MAX6388/MAX6389)
  • VCC Reset Timeout (1120ms or 1200ms)/Manual Reset Timeout (140ms or 150ms) (MAX6390)
  • Negative-Going VCC Transient Immunity
  • Low Power Consumption of 6µA at +3.6V and 3µA at +1.8V
  • Pin Compatible with MAX809/MAX810/MAX803/MAX6326/MAX6327/MAX6328/MAX6346/MAX6347/MAX6348, and MAX6711/MAX6712/MAX6713
  • Tiny 3-Pin/4-Pin SC70 and 6-Pin µDFN Packages
    • 热门应用
  • 计算机
  • 控制器
  • 精确的µP与µC电源监控
  • 双电压系统
  • 智能仪表
  • 便携式电池供电设备
