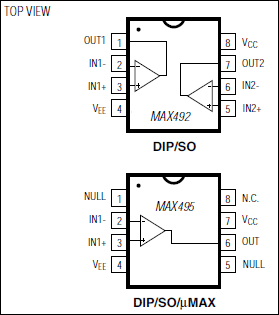

MAX492 - 典型电路框图:
MAX492典型电路框图
承诺原装正品
专营Maxim美信,真正优化您的供应链
Maxim产品 - MAX492介绍
MAX492 - 单/双/四路、微功耗、单电源、满摆幅运算放大器

MAX492是Maxim美信半导体公司的一款放大器产品,MAX492是单/双/四路、微功耗、单电源、满摆幅运算放大器,本站介绍了MAX492的封装应用图解、特点和优点、功能等,并给出了与MAX492相关的Maxim元器件型号供参考。

MAX492 - 单/双/四路、微功耗、单电源、满摆幅运算放大器 - 放大器 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

The dual MAX492, quad MAX494, and single MAX495 operational amplifiers combine excellent DC accuracy with rail-to-rail operation at the input and output. Since the common-mode voltage extends from VCC to VEE, the devices can operate from either a single supply (+2.7V to +6V) or split supplies (±1.35V to ±3V). Each op amp requires less than 150µA supply current. Even with this low current, the op amps are capable of driving a 1kΩ load, and the input referred voltage noise is only 25nV/√Hz. In addition, these op amps can drive loads in excess of 1nF.

The precision performance of the MAX492/MAX494/MAX495, combined with their wide input and output dynamic range, low-voltage single-supply operation, and very low supply current, makes them an ideal choice for battery-operated equipment and other low-voltage applications. The MAX492/MAX494/MAX495 are available in DIP and SO packages in the industry-standard op-amp pin configurations. The MAX495 is also available in the smallest 8-pin SO: the µMAX® package.

关键特性
  • 以下关键特性由Maxim美信半导体提供:
  • Low-Voltage Single-Supply Operation (+2.7V to +6V)
  • Rail-to-Rail Input Common-Mode Voltage Range
  • Rail-to-Rail Output Swing
  • 500kHz Gain-Bandwidth Product
  • Unity-Gain Stable
  • 150µA Max Quiescent Current per Op Amp
  • No Phase Reversal for Overdriven Inputs
  • 200µV Offset Voltage
  • High Voltage Gain (108dB)
  • High CMRR (90dB) and PSRR (110dB)
  • Drives 1kΩ Load
  • Drives Large Capacitive Loads
  • MAX495 Available in µMAX Package-8-Pin SO
  • Dual, precision, rail-to-rail input and output (MAX492)
  • Quad, precision, rail-to-rail input and output (MAX494)
  • Single, precision, rail-to-rail input and output (MAX495)
  • 热门应用
  • 电池供电应用
  • 数据采集
  • 低电压应用
  • 便携式设备
  • 信号调理
