MAX529 - 八通道、串行、8位DAC，带有输出缓冲器

MAX529是Maxim美信半导体公司的一款数据转换器和采样-保持电路产品，MAX529是八通道、串行、8位DAC，带有输出缓冲器，本站介绍了MAX529的封装应用图解、特点和优点、功能等，并给出了与MAX529相关的Maxim元器件型号供参考。

MAX529 - 八通道、串行、8位DAC，带有输出缓冲器 - 数据转换器和采样-保持电路 - Maxim美信半导体高性能芯片品质 - 美信半导体

产品概述

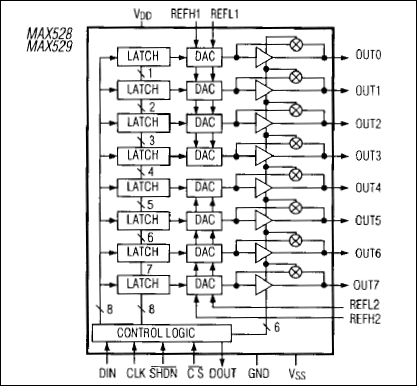

The MAX528/MAX529 are monolithic devices combining an octal 8-bit, digital-to-analog converter (DAC), 8 output buffers, and serial-interface logic in space saving shrink small outline package (SSOP). The MAX528 operates from a single supply up to 15V or from split supplies totaling up to 20V, including +5V/-15V, +12V/-5V, and +15V/-5V. The MAX529 operates from a single +5V supply or from ±5V split supplies. For both parts, a shutdown pin reduces current consumption to under 50µA, which retaining all internal DAC data.

Three output modes are serially programmable for each pair of 8 analog outputs. An unbuffered mode connects the internal R-2R DAC network directly to the output pin, reducing power consumption and avoiding the buffer's DC errors. A full-buffered mode inserts a buffer between the R-2R network and the output, providing +5mA/-2mA output drive. Half-buffered output mode is similar, but uses less power while still providing up to 15mA of output drive in a unipolar output configuration. Serial data can be "daisy-chained" from one device to another. On power-up, all data bits are reset to 0, and analog outputs enter the unbuffered mode.

关键特性

以下关键特性由Maxim美信半导体提供：

Now Available in Space-Saving SSOP

8 Buffered Noninverting Outputs

Buffer Disable Control

2 Pairs of Differential Reference Inputs

3-Wire Serial Interface

Single +5V or Dual ±5V Supply Operation (MAX529)

Low-Power Shutdown

Stable Driving Output Capacitance Loads

热门应用

数字校准

数字增益与失调调节

微控模拟输出

替代多路微调电位器
