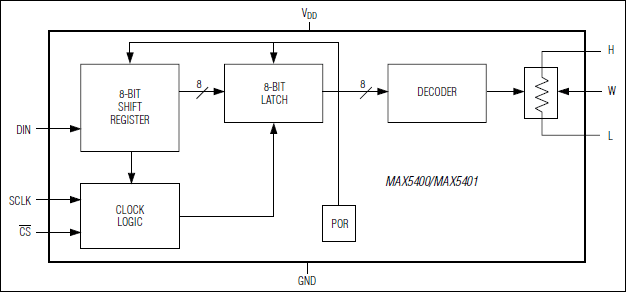

MAX5400 - 典型电路框图：
MAX5400典型电路框图
Maxim美信半导体芯片：
承诺原装正品
专营Maxim美信，真正优化您的供应链
Maxim产品 - MAX5400介绍

MAX5400 - 256抽头SOT-PoT、低漂移数字电位器，SOT23封装

MAX5400是Maxim美信半导体公司的一款光电产品产品，MAX5400是256抽头SOT-PoT、低漂移数字电位器，SOT23封装，本站介绍了MAX5400的封装应用图解、特点和优点、功能等，并给出了与MAX5400相关的Maxim元器件型号供参考。

MAX5400 - 256抽头SOT-PoT、低漂移数字电位器，SOT23封装 - 光电产品 - 256抽头数字电位器，提供节省空间的8引脚SOT23封装 - 美信半导体

产品概述

The MAX5400/MAX5401 digital potentiometers offer 256-tap SOT-PoT™ digitally controlled variable resistors in tiny 8-pin SOT23 packages. Each device functions as a mechanical potentiometer, consisting of a fixed resistor string with a digitally controlled wiper contact. They operate from +2.7V to +5.5V single-supply voltages and use an ultra-low supply current of 0.1µA. These devices also provide glitchless switching between resistor taps, as well as a convenient power-on reset that sets the wiper to the midscale position at power-up. A low 5ppm/°C ratiometric temperature coefficient makes it ideal for applications requiring low drift.

The MAX5400/MAX5401 serve well in applications requiring digitally controlled resistors, including adjustable voltage references and programmable gain amplifiers (PGAs). A nominal end-to-end resistor temperature coefficient of 50ppm/°C allows these parts to be used as variable resistors in applications such as low-tempco adjustable gain and other circuit configurations.

Two resistance values are available: 50kΩ (MAX5400) and 100kΩ (MAX5401). Each device is guaranteed over the extended industrial temperature range (-40°C to +85°C).

关键特性
  • 以下关键特性由Maxim美信半导体提供：
  • Miniature 8-Pin SOT23 (3mm x 3mm)
  • 256 Tap Positions
  • Ultra-Low 0.1µA Supply Current
  • Single-Supply Operation: +2.7V to +5.5V
  • Low Ratiometric Temperature Coefficient: 5ppm/°C
  • Power-On Reset: Wiper Goes to Midscale (Position 128)
  • Glitchless Switching Between the Resistor Taps
  • 3-Wire SPI™-Interface Compatible
  • 50kΩ/100kΩ Resistor Values
    • 热门应用
  • 可调节电压基准
  • 低偏差可编程增益放大器
  • 替代机械电位器
