MAX5464 - 32抽头FleaPoT、2线数字电位器

MAX5464是Maxim美信半导体公司的一款光电产品产品，MAX5464是32抽头FleaPoT、2线数字电位器，本站介绍了MAX5464的封装应用图解、特点和优点、功能等，并给出了与MAX5464相关的Maxim元器件型号供参考。

MAX5464 - 32抽头FleaPoT、2线数字电位器 - 光电产品 - 业内尺寸最小的数字电位器 - 美信半导体

产品概述

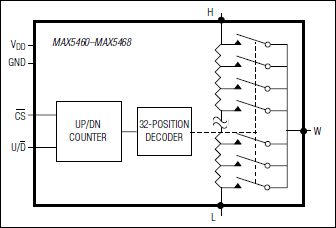

The MAX5460–MAX5468 linear-taper digital potentiometersperform the same function as a mechanical potentiometeror a variable resistor. These devices consist of afixed resistor and a wiper contact with 32-tap points thatare digitally controlled through a 2-wire serial interface.The MAX5462/MAX5465/MAX5468 are configured aspotentiometers. The rest of the devices in this family areconfigured as variable resistors. See Pin Configurationsfor part functionality.

Three resistance values are available: 10kΩ (MAX5466/MAX5467/MAX5468), 50kΩ (MAX5463/MAX5464/MAX5465), and 100kΩ (MAX5460/MAX5461/MAX5462).The MAX5460–MAX5465 (100kΩ and 50kΩ) are availablein space-saving 5-pin and 6-pin SC70 packages.The MAX5466/MAX5467/MAX5468 (10kΩ) are availablein 5-pin and 6-pin SOT23 packages.

关键特性

以下关键特性由Maxim美信半导体提供：

Miniature SC70 and SOT23 Packages

0.3µA Ultra-Low Supply Current

+2.7V to +5.5V Single-Supply Operation

Glitchless Switching Between Resistor Taps

Power-On Reset to Midscale

2-Wire Up/Down Serial Interface

10kΩ, 50kΩ, and 100kΩ Resistance Values

热门应用

增益调节

LCD屏调节

线阻抗匹配

替代机械电位器

音量控制
